Description
Efficient Global Design

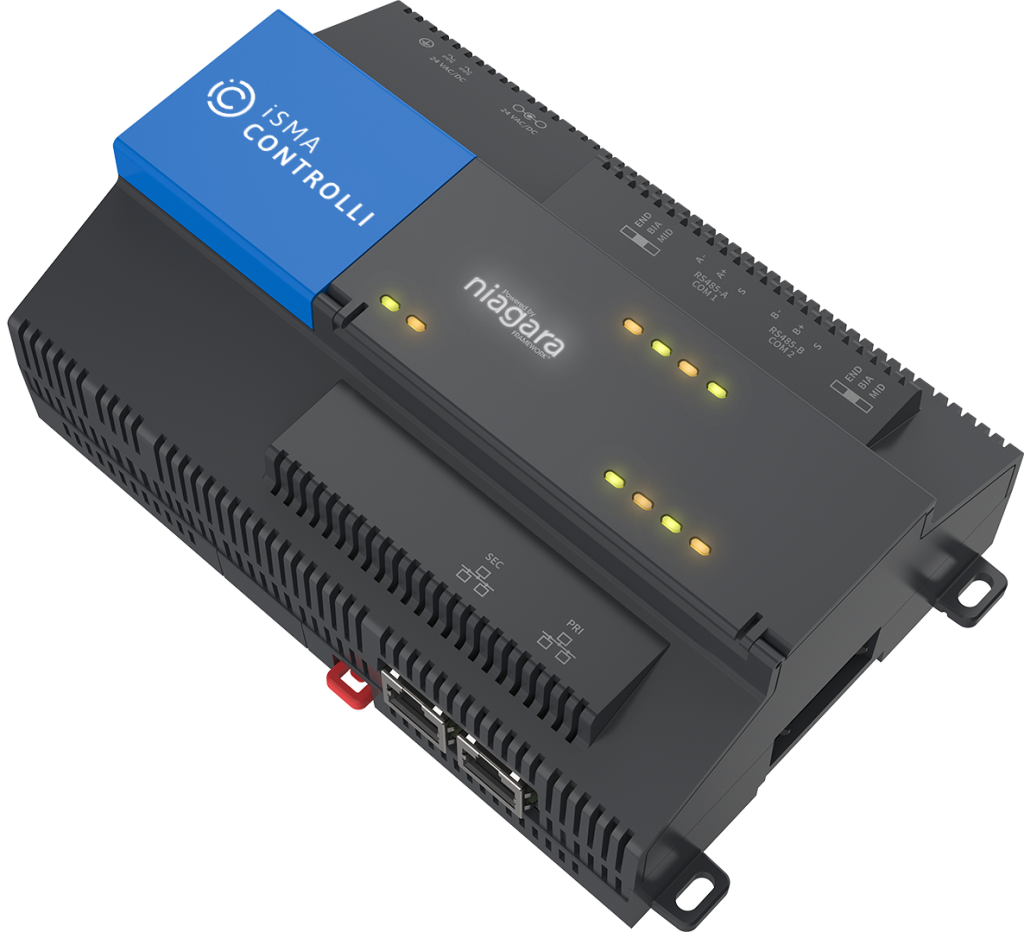

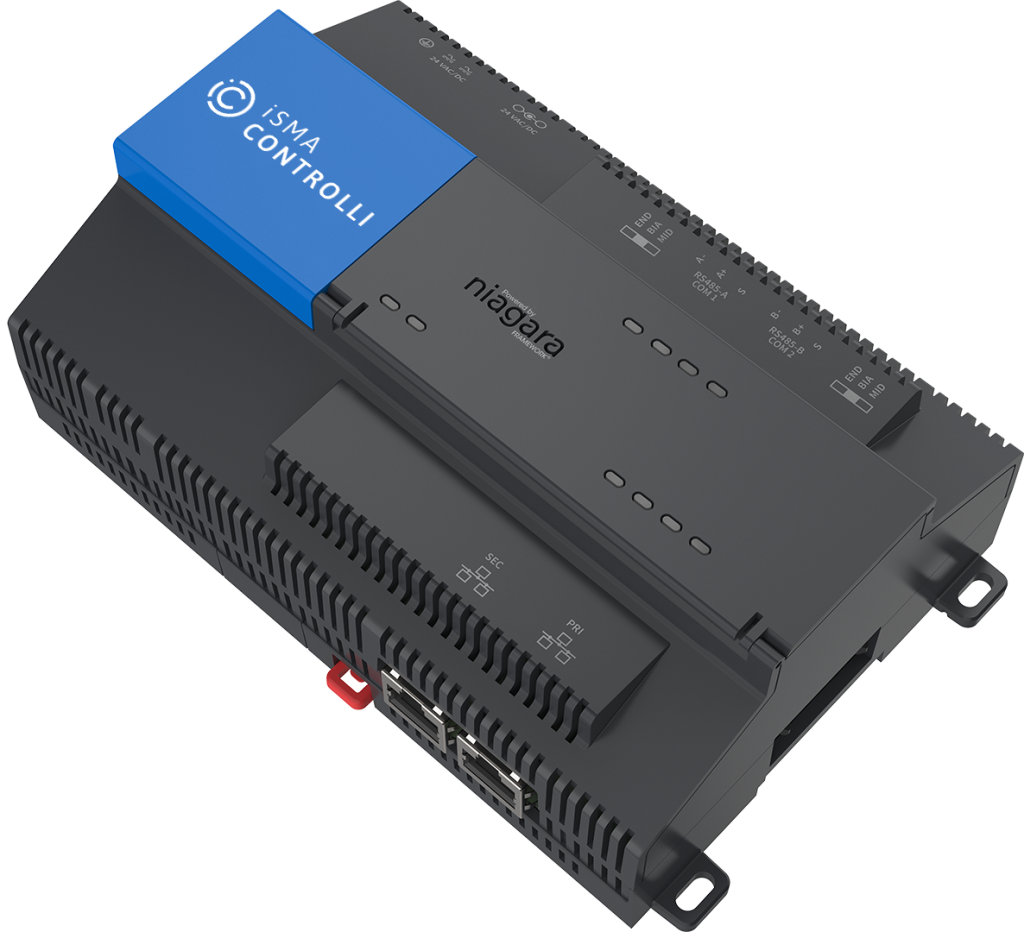

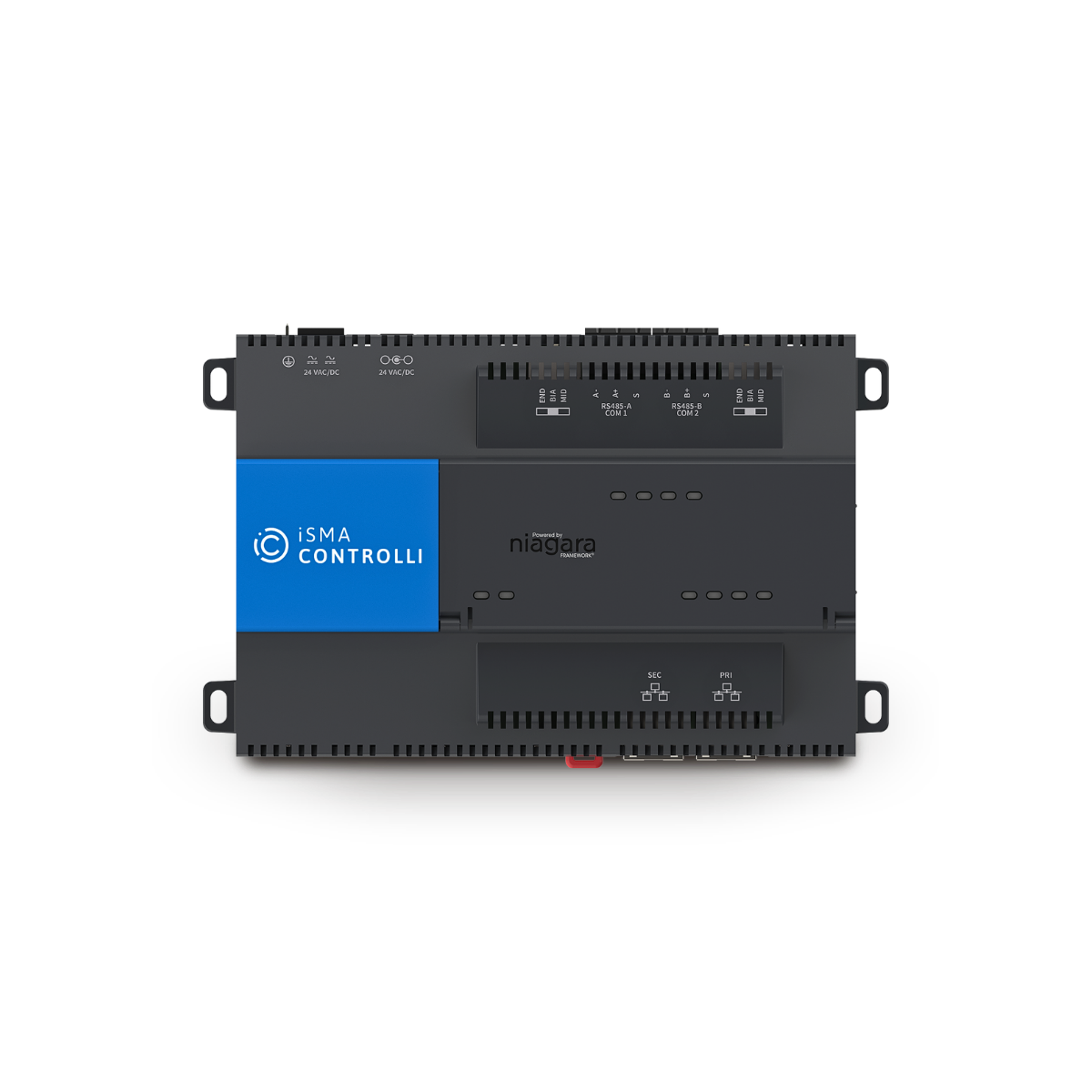

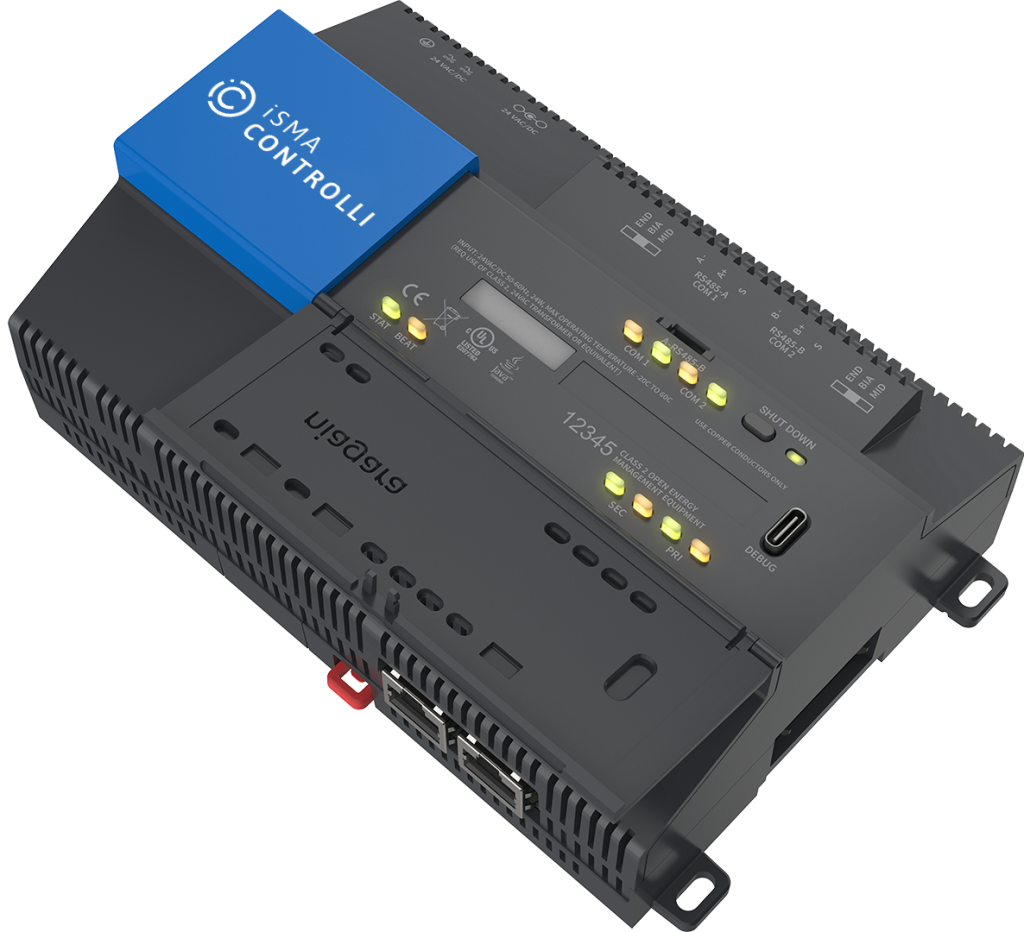

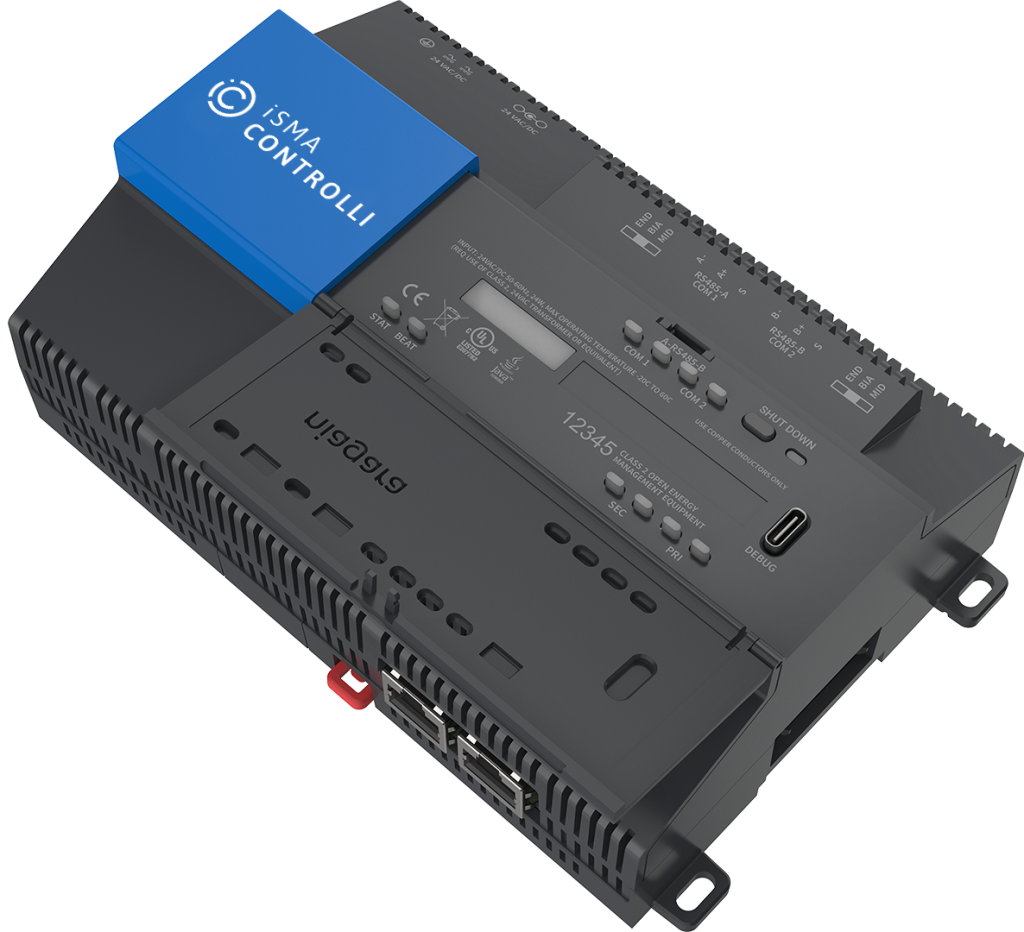

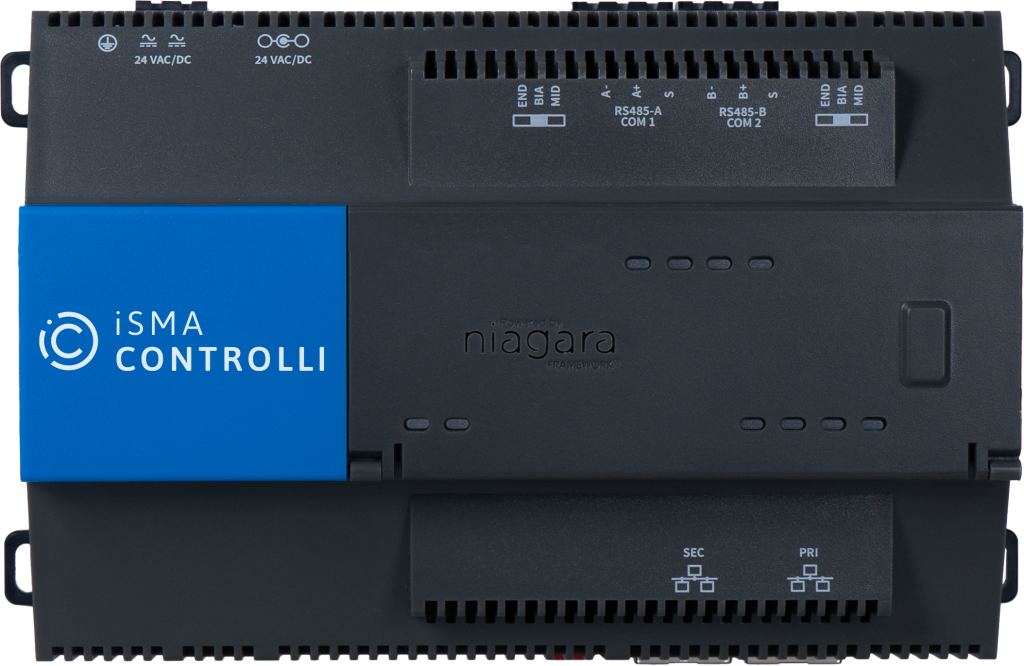

The modular design of the iSMA-B-J9 controller makes it easy to install, integrate and deploy. Tool-less installation with expansion capability reduces installation complexity and improves flexibility. Systems integrators can focus on engineering solutions, not assembling components. And their lives will be simplified with a global power supply and improved access to standard enclosures.
Increased Performance
With a Quad Core processor, double storage, and RAM, the iSMA-B-J9 offers increased performance and capacity with faster bootup and station load time. The iSMA-B-J9 is fully compatible with existing expansion models and the same footprint as past models allows for seamless replacement for future updates. The iSMA-B-J9 can also be ordered without the wireless interface if needed.
Optimized for Niagara 4
The iSMA-B-J9 controller leverages the exciting features of Niagara 4 (supported running Niagara Framework® 4.13 or higher). It adds to the enhanced user experience, maximizing Niagara 4’s key advantages: pure Web interface based on HTML5 with HTML5 views, responsive UI, charting and data visualization, a common design language, better reporting, robust security and improved device management.
Niagara Framework
Versions 4.13 and later
Technical Specification
Hardware SpecificationNXP iMX8M+ Quad Core CPU2GB LPDDR4 RAM8GB onboard EMMC storage8GB Removable microSD cardUSB type C connector (debug port)(2) isolated RS-485 with selectable bias and termination(2) 10/100/1000MB Ethernet ports
Secure boot
Real-time clock
Batteryless
CommunicationBACnet IPBACnet MS/TPBACnet Secure ConnectFOXKNX-IPLONM-Bus
All types of ModbusMQTToBIXOPC UASNMPPower supply24 V AC/DC
