Description

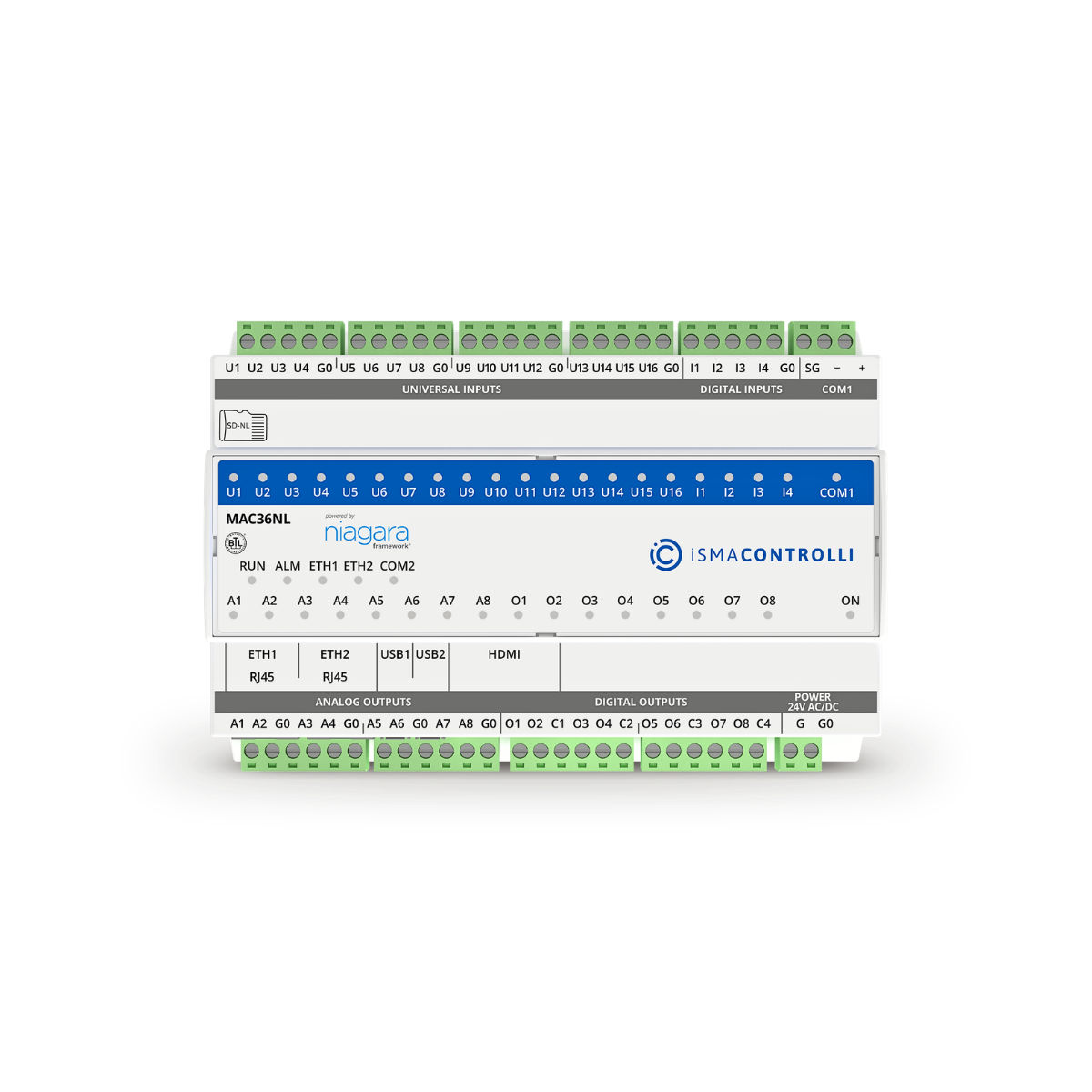

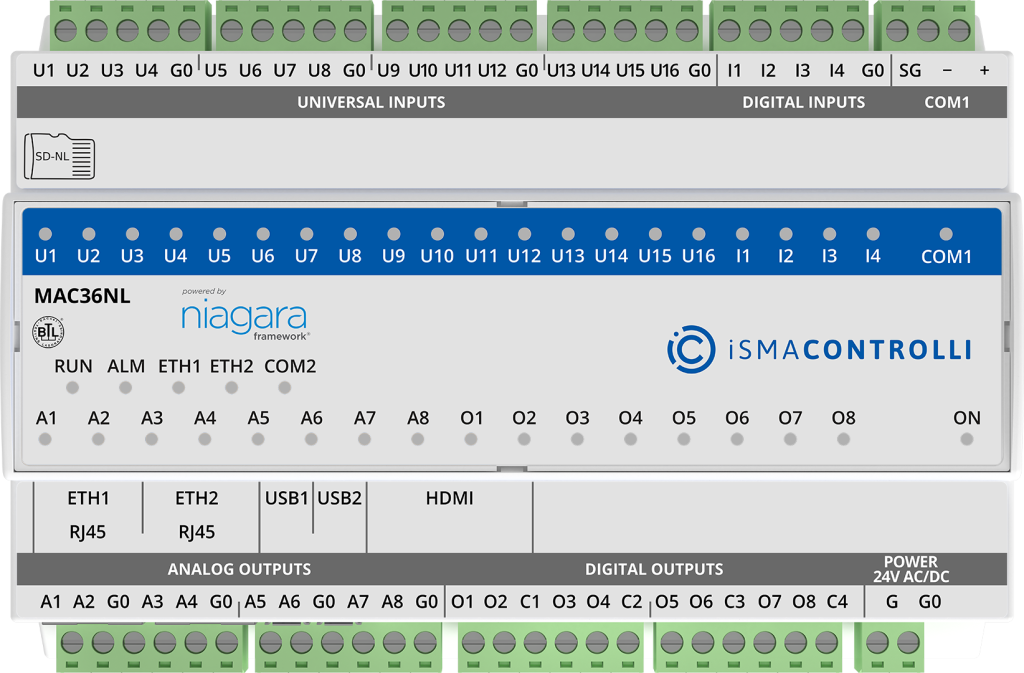

MAC36NL Core Software
Core Software enables the use of a device-specific Niagara license file that grants access to the Niagara Framework and binds the software to a specific SD-NL card for the MAC36NL controller. For each MAC36PRO controller to function properly, an SD-NL card and a Niagara Core software license are required, along with a Software Maintenance Agreement (SMA).
The 36 on-board I/Os are not counted in the core license point count.
Available Core software models:iSMA-B-MAC-L-50 – Niagara Core License for MAC36PRO, 50 Proxy Points (requires iSMA-B-MAC-50-M0 maintenance)iSMA-B-MAC-L-100 – Niagara Core License for MAC36PRO, 100 Proxy Points (requires iSMA-B-MAC-100-M0 maintenance)iSMA-B-MAC-L-250 – Niagara Core License for MAC36PRO, 250 Proxy Points (requires iSMA-B-MAC-250-M0 maintenance)iSMA-B-MAC-L-500 – Niagara Core License for MAC36PRO, 500 Proxy Points (requires iSMA-B-MAC-500-M0 maintenance)iSMA-B-MAC-L-1250 – Niagara Core License for MAC36PRO, 1,250 Proxy Points (requires iSMA-B-MAC-1250-M0 maintenance)Special Demo Model for engineering onlyiSMA-B-MAC-L-DEMO – MAC36NL Niagara license with unlimited points and protocols, for partner engineering and demo use only. Not for end-user sales. Requires active iSMA-B-CH-TR-1Y.
Standard protocols included:BACnet, BACnet IP, BACnet/SC, Modbus, Modbus IP, Modbus TCP/IP Gateway, KNX IP, SNMP, LON IP, M-Bus, M-Bus IP, OPC UA (Client/Server), oBIX, MQTT.
Selected standard Niagara functions included in the Core license:Visualization, Alarming, Scheduling, Trending, Control Logic, Data Logging, User Management, Security, Device Integration, Protocol Integration, Web Services, Backup & Restore, Commissioning ToolsSD-NL and Core License
The iSMA-SD-NL is licensed together with the Core software and is not tied to the MAC36NL physical hardware. The SD-NL card is interoperable across all iSMA-B-MAC36NL hardware models.
