Description

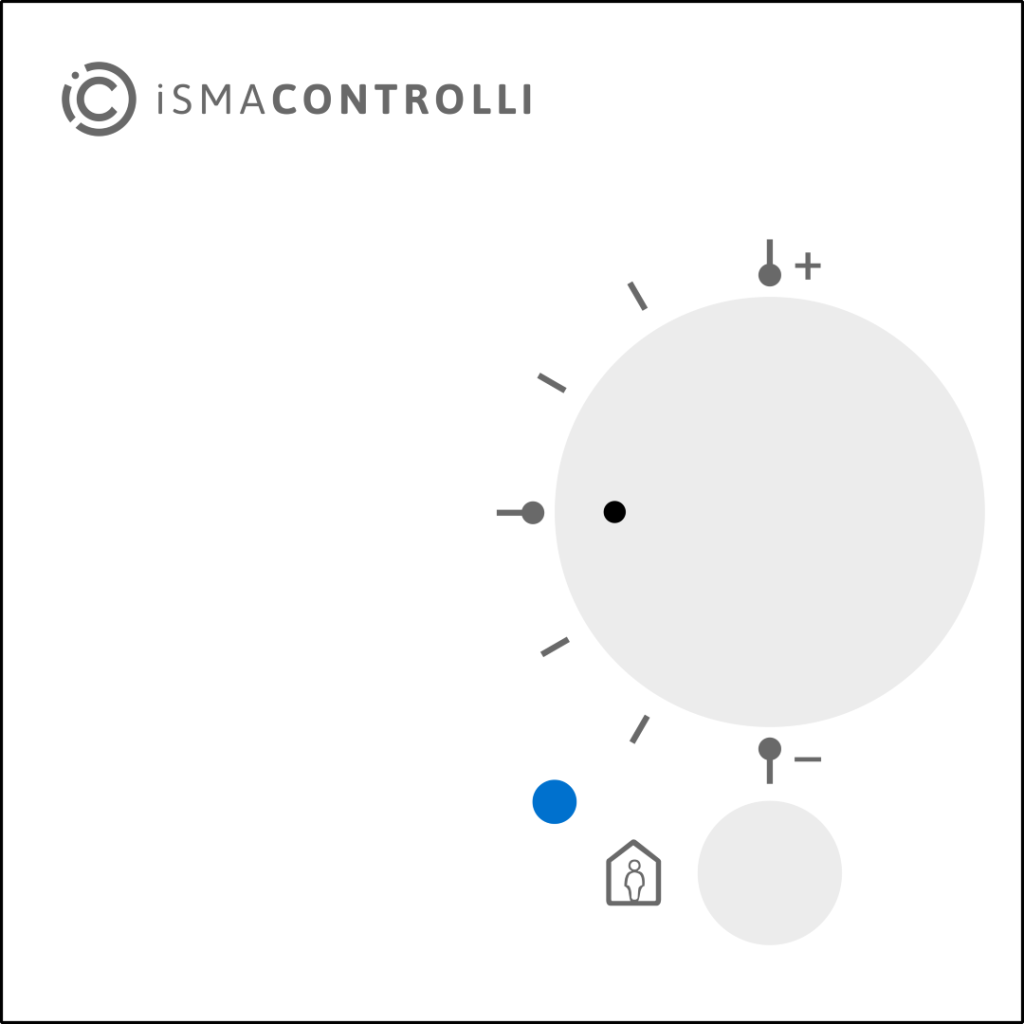

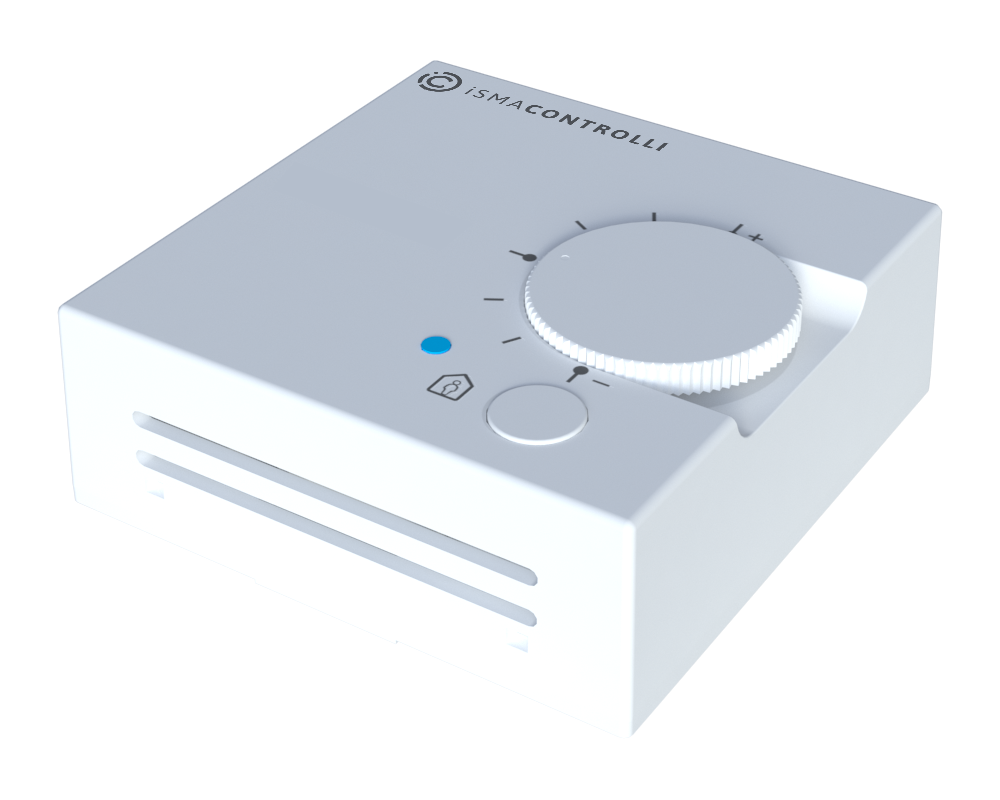

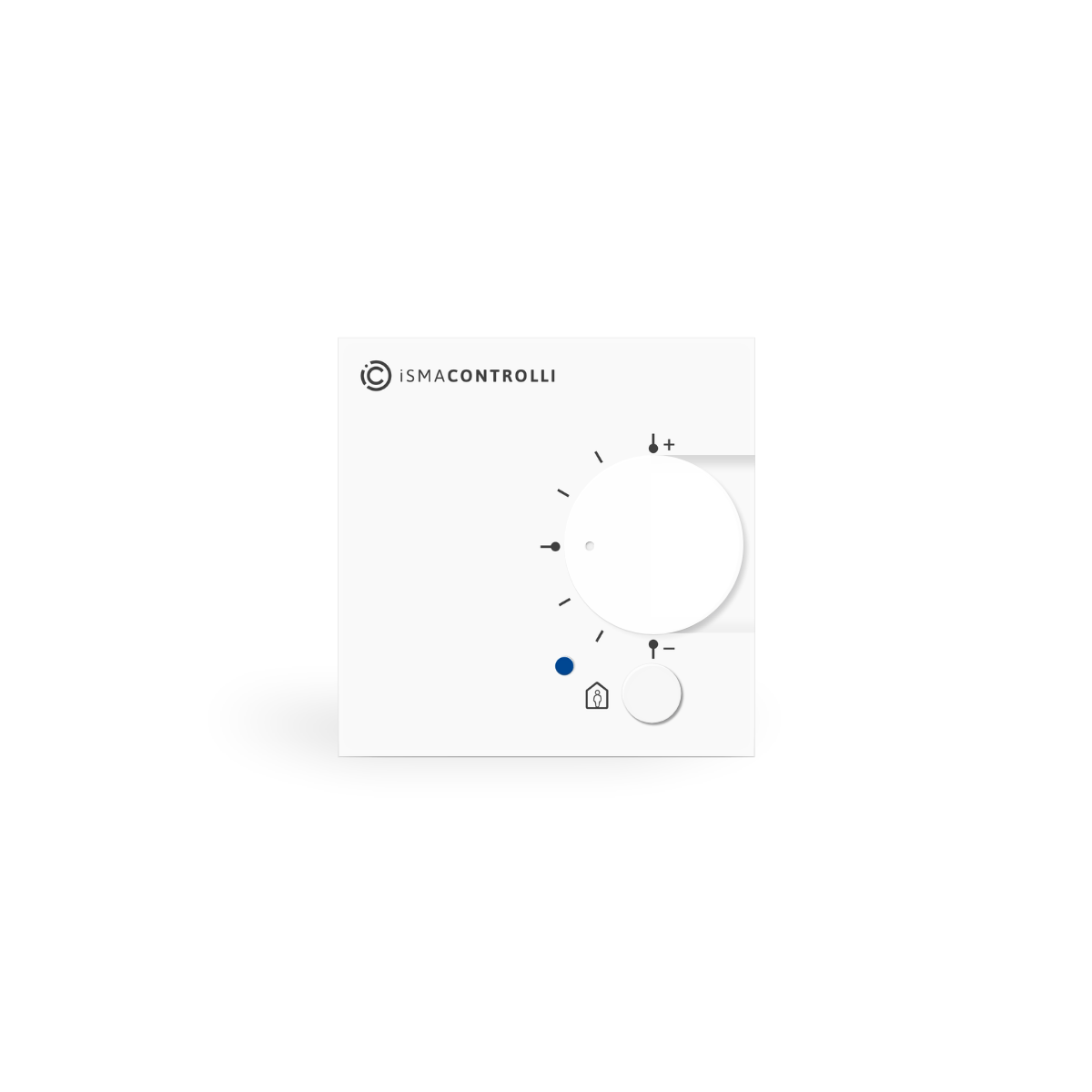

Cost-effective Wall Panel iSMA-B-SP is a wall panel with a potentiometer, status LED, function button, and built-in temperature sensor. The device is designed for those who are looking for a cost-effective solution. Compact size and clear style make the device friendly to architects and building owners. Seamless Configuration with FCU ControlleriSMA-B-SP is ready to use with FCU controllers without a need for any configuration. Wall panel connected with FCU controller creates a cost-effective solution for comfort management and energy saving. Technical Specification
Temperature Sensor
Type: 10k NTCRange: 0-50°CAccuracy: +/- 0.5°CResolution: +/- 0.1°CPotentiometer
Type: 10k, linear
Tolerance: ±20%LED Diode
Waterclear blue
Push Button Switch
Normal open (NO)
