Description

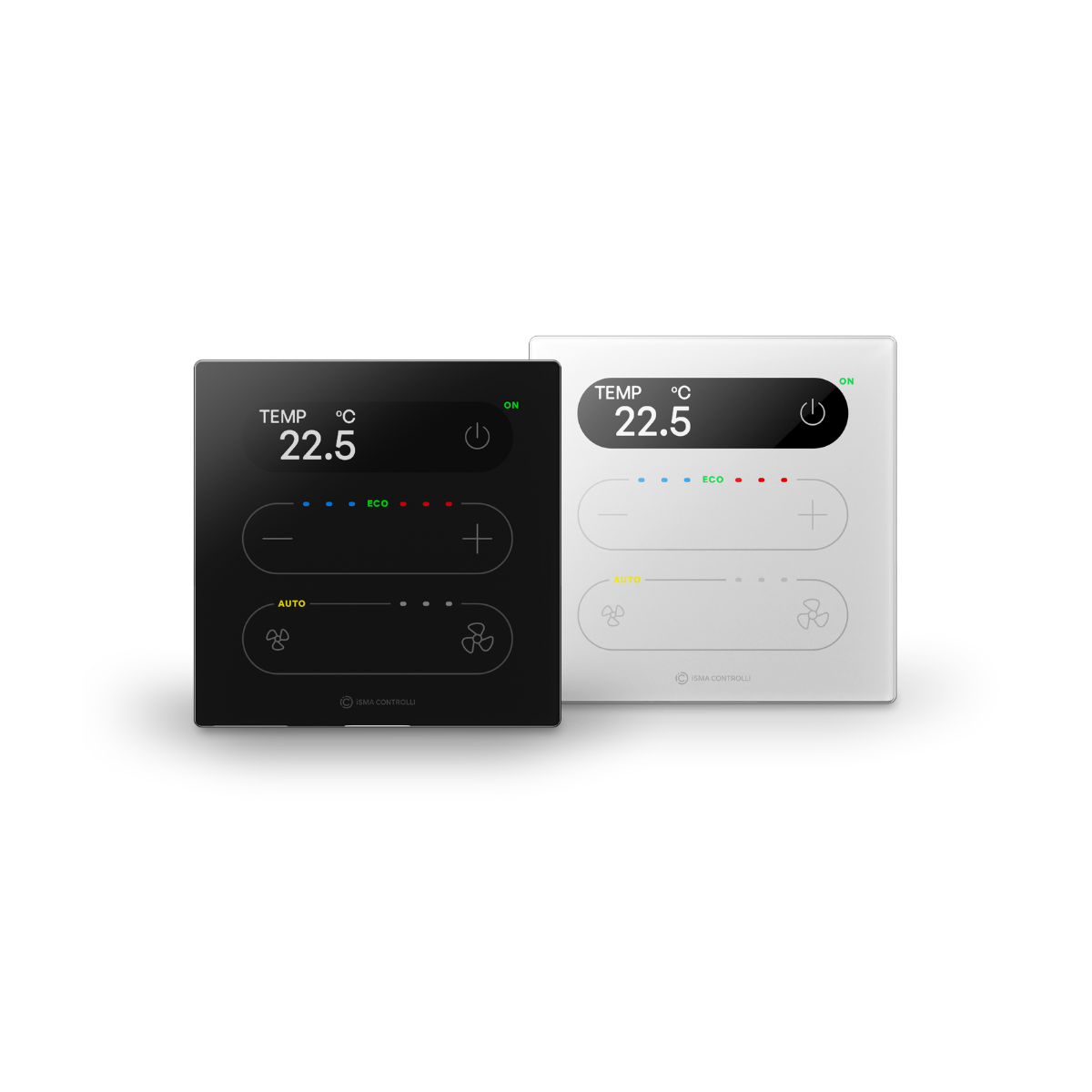

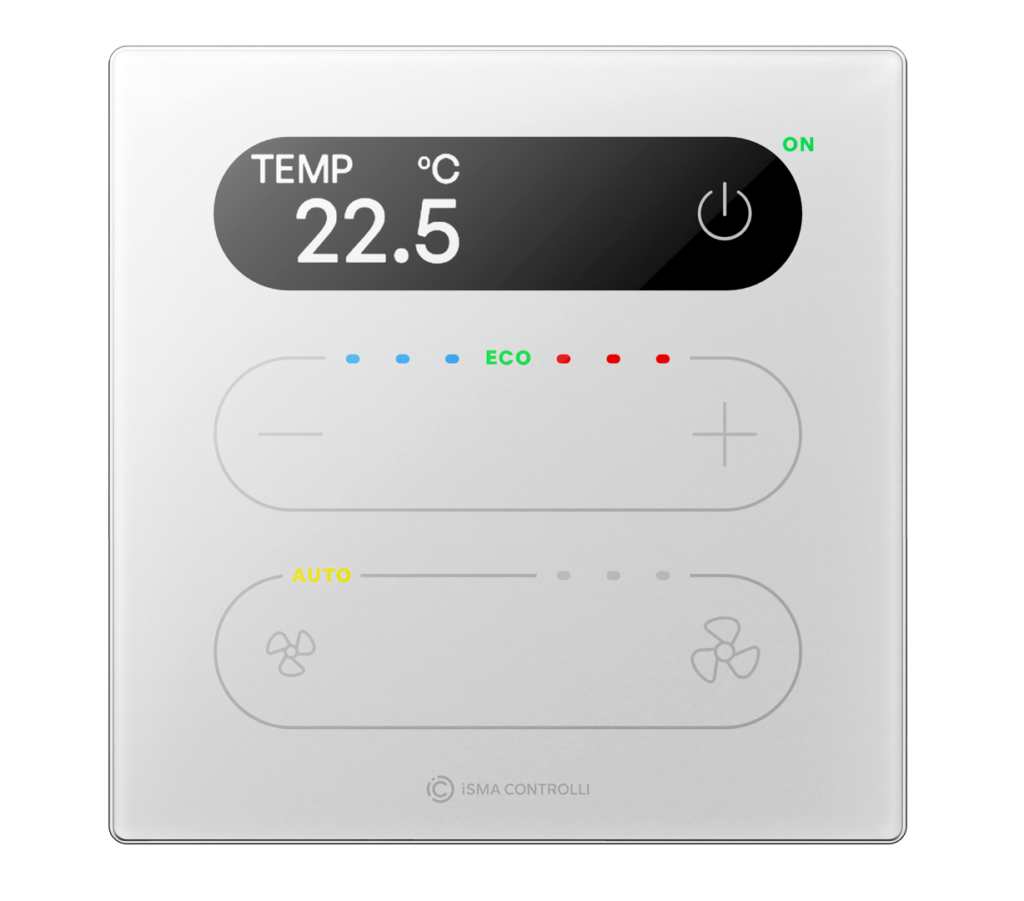

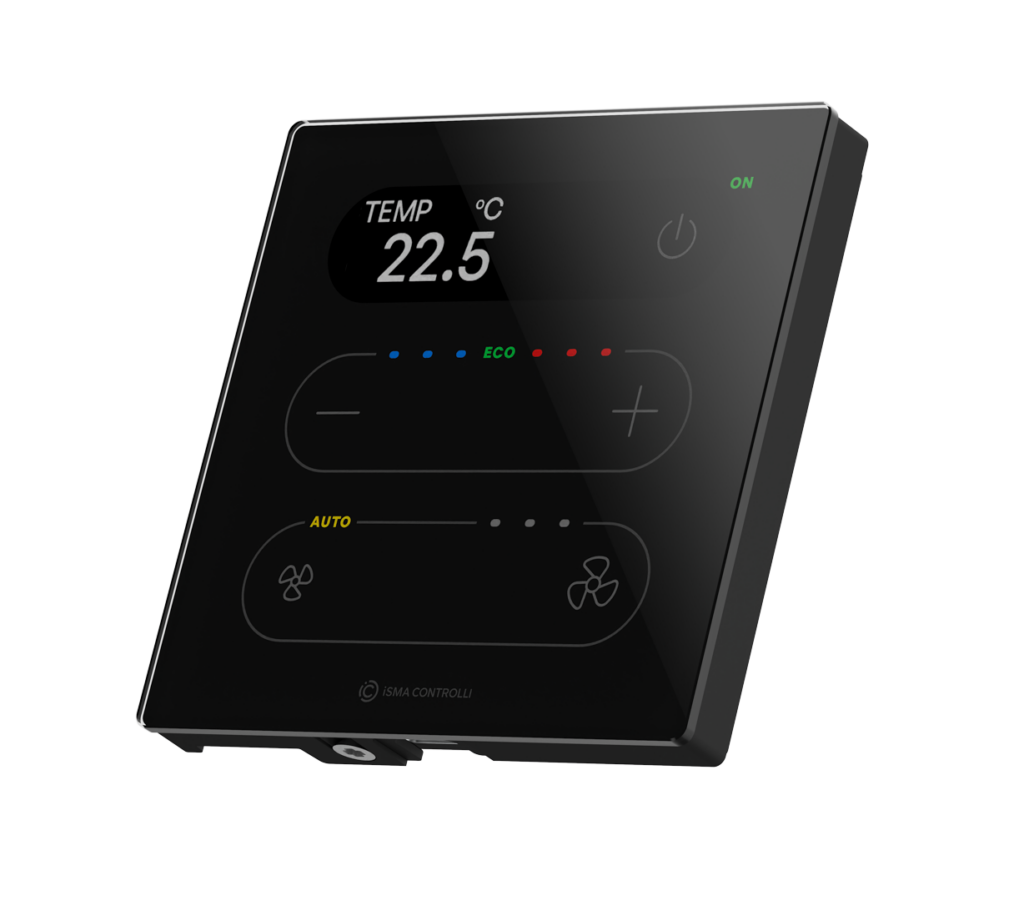

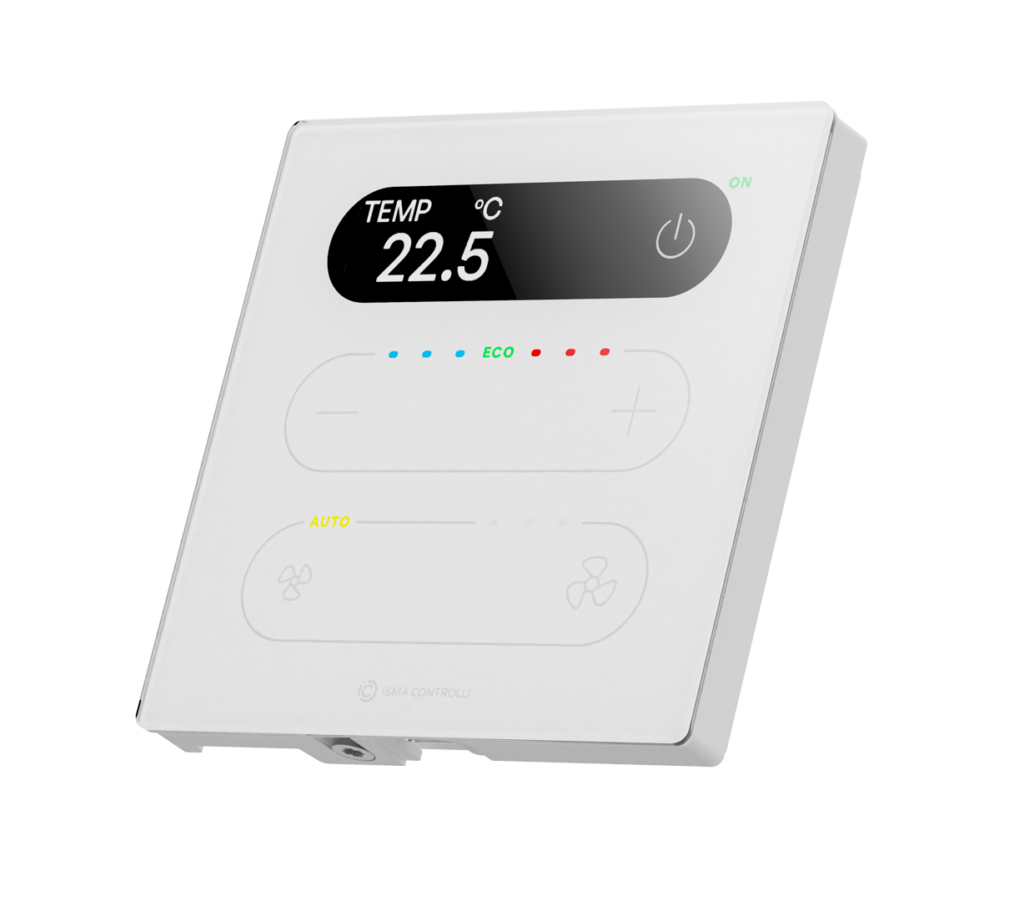

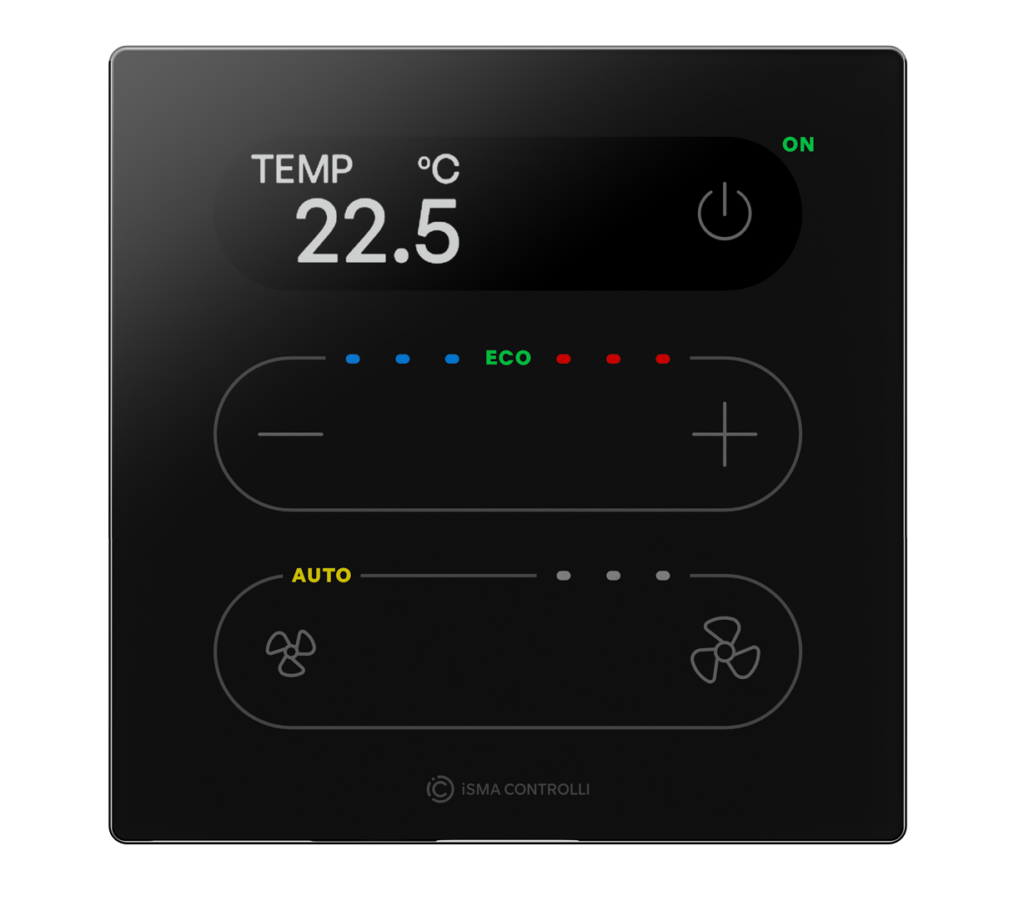

Touch Point 2.0 room operating unit with glass front and notched display. Touch buttons for occupancy, temperature setpoint and fan control. Built-in temperature, humidity, and CO2 sensor. Communication Modbus RTU or BACnet MS/TP. Power supply 24 V AC/DC.
Enjoy comfort without complexity
The tenant’s time matters. Every user interaction must be clear and intuitive. With simplicity in mind, Touch Point 2.0 features clear icons, readable and responsive control buttons, and a screen integrated into a brand-new notch.
Give the interior a premium look
With refined details, slim profile, and elegant finish, Touch Point 2.0 Wall Panels will seamlessly blend into interiors of both residential and commercial spaces. The discreet yet stylish glass design will provide a high-end look while providing control over the entire space, including temperature, lighting, blinds, and more.
Flexibility that fits every project
Available in elegant white or black, the panels are equipped with temperature, CO2, and humidity sensors, giving complete freedom to match functionality and design to their specific needs. With support for BACnet MS/TP and Modbus RTU/ASCII, Touch Point 2.0 integrates smoothly with both new and existing projects.
Quick to install, simple to expand

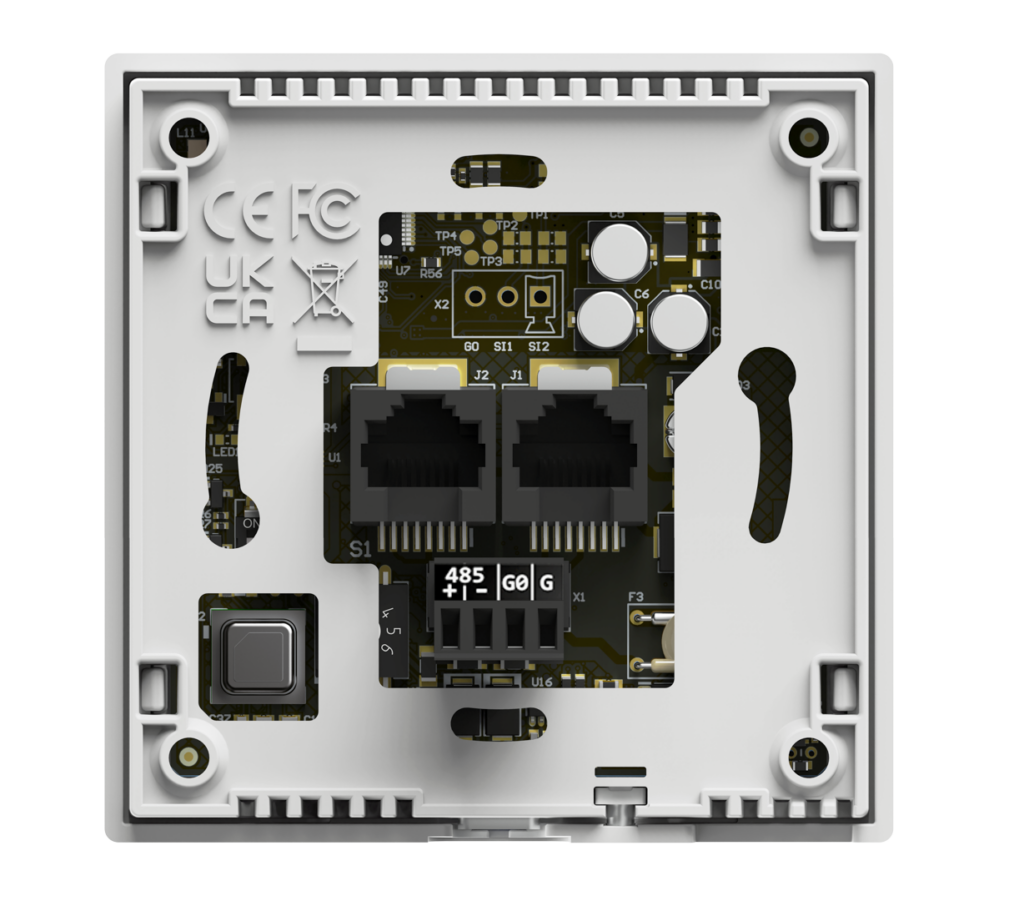

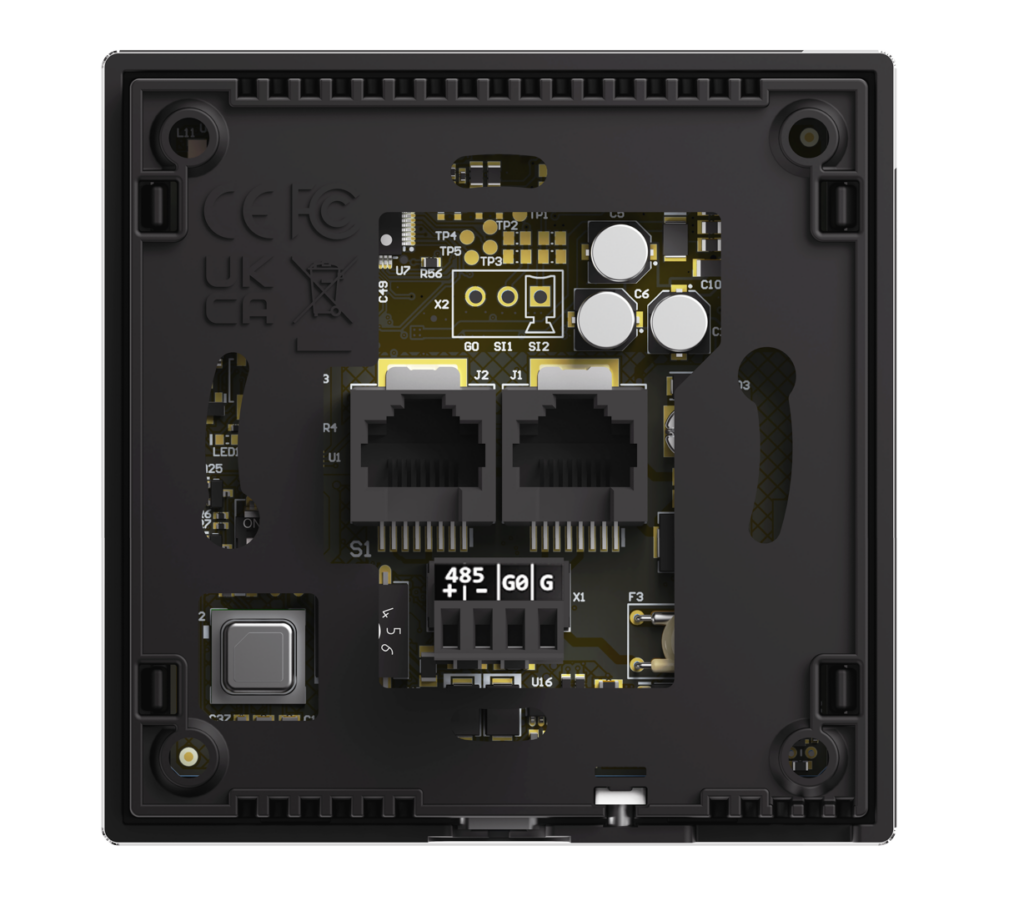

Thanks to the Smart Plug™ interface, Touch Point 2.0 Wall Panels receive both power and data communication through a smart connection with a controller. The reduced connection complexity eliminates complicated wiring and educes installation time.
Touch Point 2.0 Wall Panels can be easily daisy-chained with two RJ45 connectors available in each panel, ensuring expandability and legacy support.
Technical Specification
Five touch function buttonsRS485 interface – 2 Smart PlugTM connectors, combining serial communication and power supply in a single RJ45 port1 screw connector for direct RS485 and power supply
Daisy-chain supportDIP switches for configuration
Ease of configuration with a free iSMA Configurator app and USB-C connection
Flexible sensors configurations with temperature, humidity, and CO2 sensors
Freely configurable RGB LEDFlush wall box 60 mm, US 1-gang electrical outlet box
CommunicationBACnet MS/TPModbus RTU/ASCIIPower Supply20 – 34 V DC24 V AC ± 20%
