Description

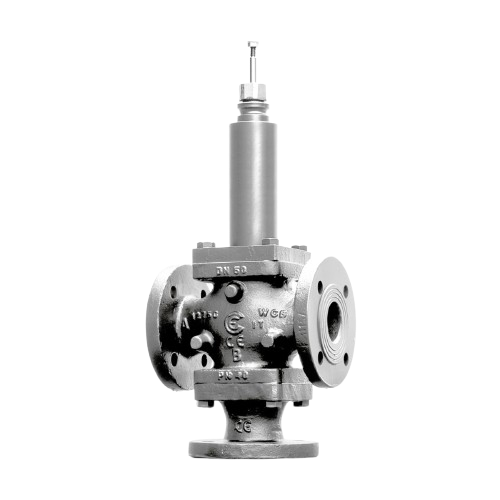

The 2FAA.
T and 3FAA.
T valve family is designed for precise flow control and mixing applications in high-pressure heating, cooling and energy systems. With a robust steel body and globe valve construction, these valves ensure stable regulation, reliable shut-off and long term performance in demanding HVAC and industrial installations.
The two-way versions are optimized for accurate flow modulation, while the three-way variants provide reliable mixing or diverting control. Designed for seamless integration with electric actuators, the 2FAA.
T & 3FAA.
T family is well suited for systems operating under elevated pressure and extended temperature conditions.
Key Features
Two-way and three-way globe valves in one product family
Nominal diameter range DN15…DN125
Pressure rating PN40
Flanged connection
Kvs range 1.6…110
Steel body construction for demanding operating conditions
Suitable for water, hot water, glycol mixtures and steam
Media temperature range –20…230°CCompatible with electro-mechanic globe valve actuators
Motorized by MVE and MVH actuators
Benefits
Reliable control and mixing under high pressure
Stable and repeatable control performance
Extended temperature operating range
Robust construction for long service life
Easy actuator integration and servicing
Applications
High-pressure heating and cooling circuits
Energy and boiler plants
Heat exchangers and distribution manifolds
Mixing and diverting applications
Commercial and industrial HVAC installations
