Description

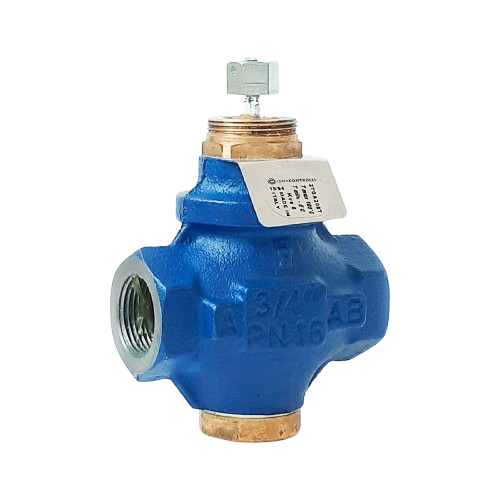

The 2TGA.
BT valve family is designed for high-performance flow control applications in heating, cooling and ventilation systems where high differential pressure and tight shut-off are required. Thanks to the compact design and balanced plug construction, these valves ensure stable control performance and reliable operation in demanding HVAC installations.
With threaded connections and a robust metal construction, the 2TGA.
BT valves are suitable for use in terminal units and distribution circuits. The family is designed for seamless integration with electric actuators, offering a compact and efficient solution for modern HVAC systems.
Key Features• Two-way balanced globe valves• Nominal diameter range DN20…DN50• Pressure rating PN16• Threaded female G connection• Kvs range 5…30• Grey cast iron body• Stainless steel plug, seat and stem• Equal percentage control characteristic• Suitable for water and glycol mixtures• Media temperature range –5…120 °C• Low leakage design (max 0.03% of Kvs)• Designed for high differential pressure and high close-off pressure• Compatible with electro-mechanical globe valve actuators• Motorized by MVC actuators
Benefits• Stable control performance under high differential pressure• Compact solution for space-limited installations• Reliable shut-off and long service life• Easy integration with standard electric actuators
Applications• Heating and cooling circuits• Terminal units• AHU coils and heat exchangers• Commercial HVAC installations
