Description
The 2FSA.
B valve family is designed for precise flow control in heating, cooling and industrial HVAC systems where high differential pressure and low leakage are required. Thanks to the balanced plug design, these valves ensure stable regulation and reliable shut-off even under demanding operating conditions.

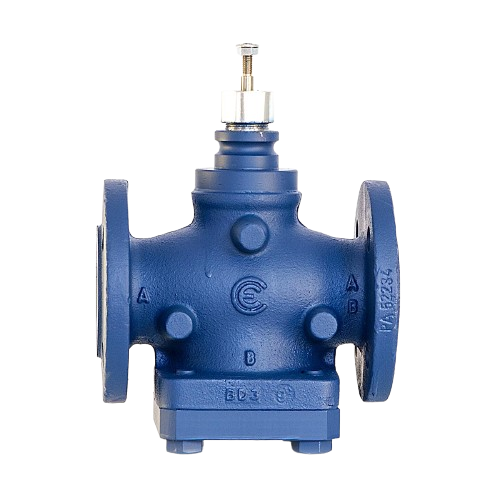

With a robust spheroidal cast iron body and globe valve construction, the 2FSA.
B series is particularly suitable for applications with high pressure and high ΔT, such as overheated water and steam systems. The balanced internal design reduces actuator load while maintaining accurate and repeatable control performance.
Key Features
Two-way balanced globe valves
Nominal diameter range DN25…DN80
Pressure rating PN25
Flanged connection
Kvs range 4…100
Cast iron body
Suitable for water, overheated water, glycol mixtures, diathermic oil and steam
Media temperature range –10…230 °CVery low leakage design for high close-off pressure applications
Balanced plug construction reducing actuator force requirements
Designed for operation with electric globe valve actuators
Motorized by MVE and MVH actuators
Benefits
Reliable control under high differential and close-off pressures
Reduced actuator sizing thanks to balanced design
Stable and repeatable control performance
Long service life in demanding HVAC and industrial systems
Applications
High-pressure heating systems
Boiler supply and return circuits
Overheated water and steam applications
District heating and industrial HVAC installations
