Description

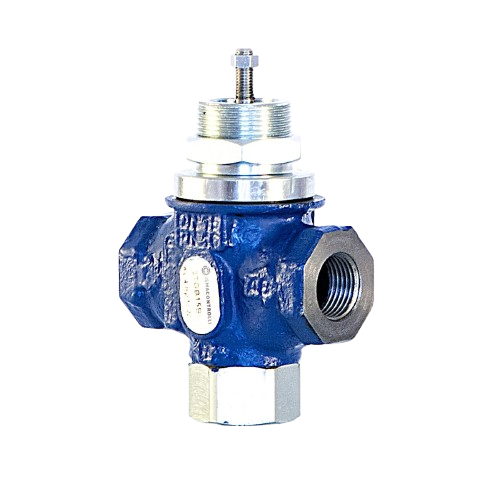

The 2TGB.
B and 3TGB.
B valve family is designed for precise flow control and mixing applications in heating and cooling systems. With a compact globe valve design and cast iron body, these valves provide stable regulation, reliable shut-off and long term performance in terminal units and small distribution circuits.
The two-way versions are optimized for accurate flow modulation, while the three-way variants are intended exclusively for mixing applications. Thanks to their threaded connections and compatibility with electric actuators, the 2–3TGB.
B family offers a compact and versatile solution for HVAC control at terminal and zone level.
Key Features
Two-way and three-way globe valves
Nominal diameter range DN15
Pressure rating PN16
Female threaded connection
Kvs range 0.4…4
Cast iron body
Brass plug and stainless steel stem
Suitable for water and glycol mixtures
Media temperature range –5…140 °CLow leakage design for stable regulation
Designed for operation with electo-mechanic globe valve actuators
Motorized by MVC, MVE.
S and MVB actuators
Benefits
Compact solution for terminal and zone control
Precise and repeatable flow regulation
Reliable operation in HVAC installations
Easy installation thanks to threaded connections
Proven construction for long service life
Applications
Fan coil units
Small heating and cooling circuits
Zone control applications
Mixing applications in HVAC systems
