Description

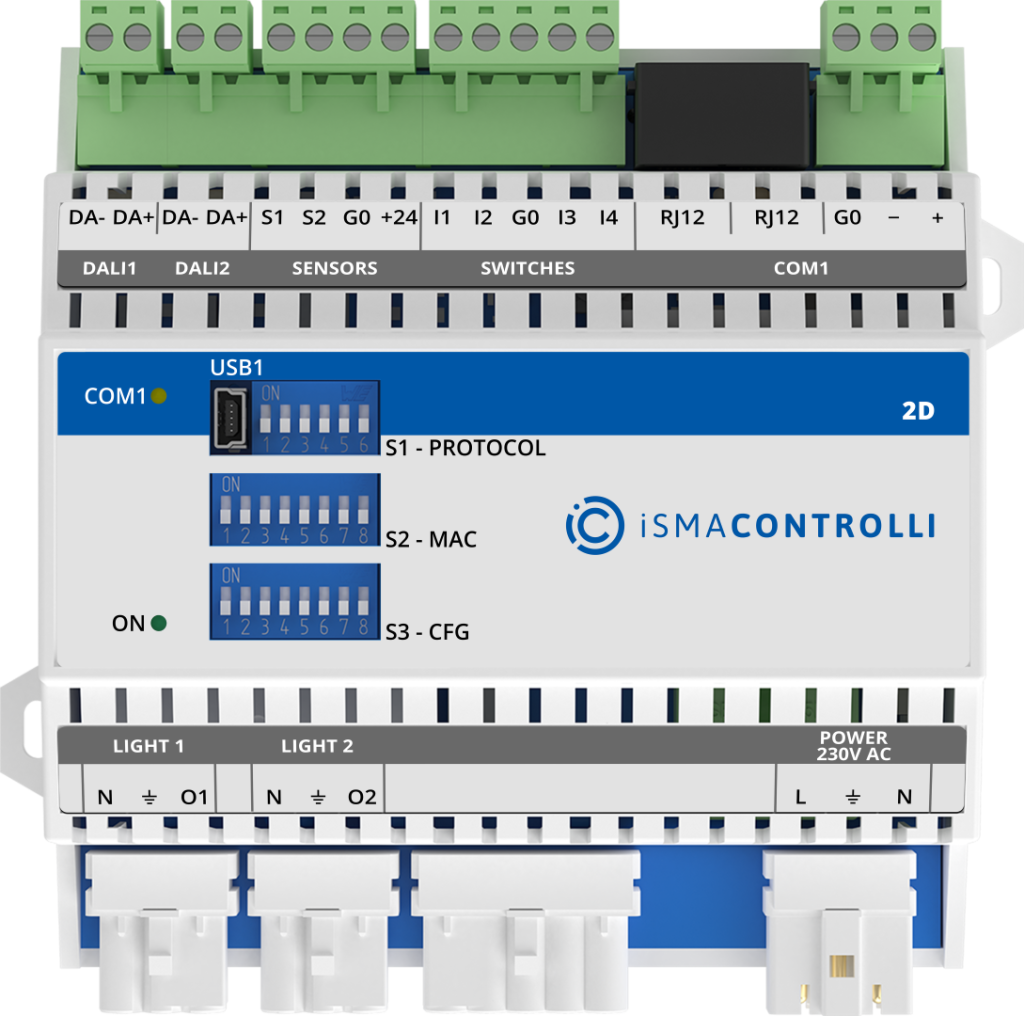

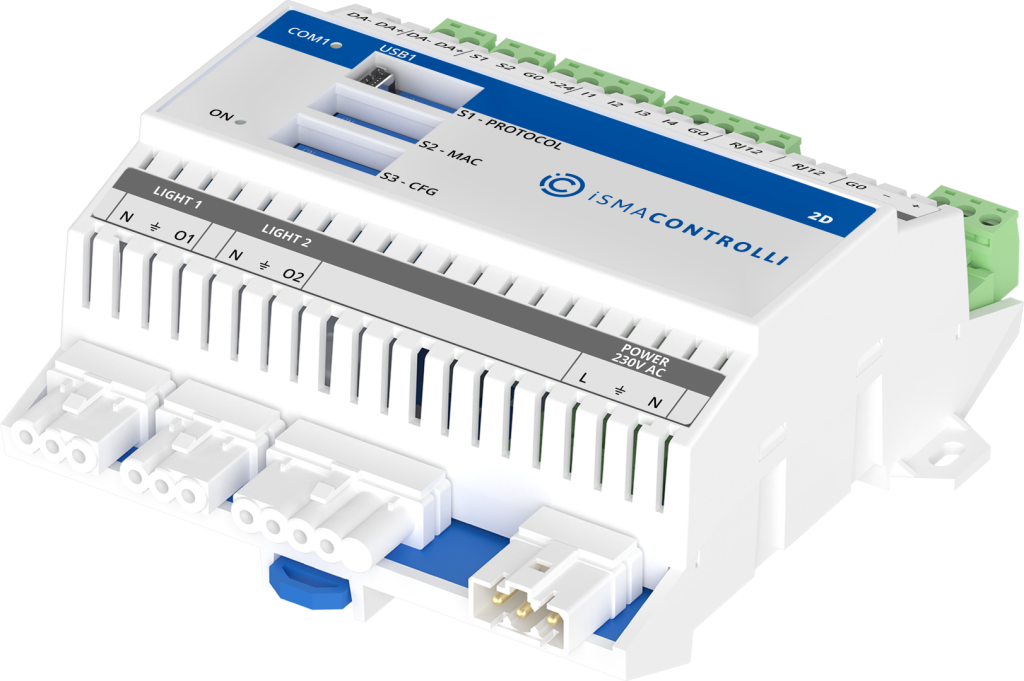

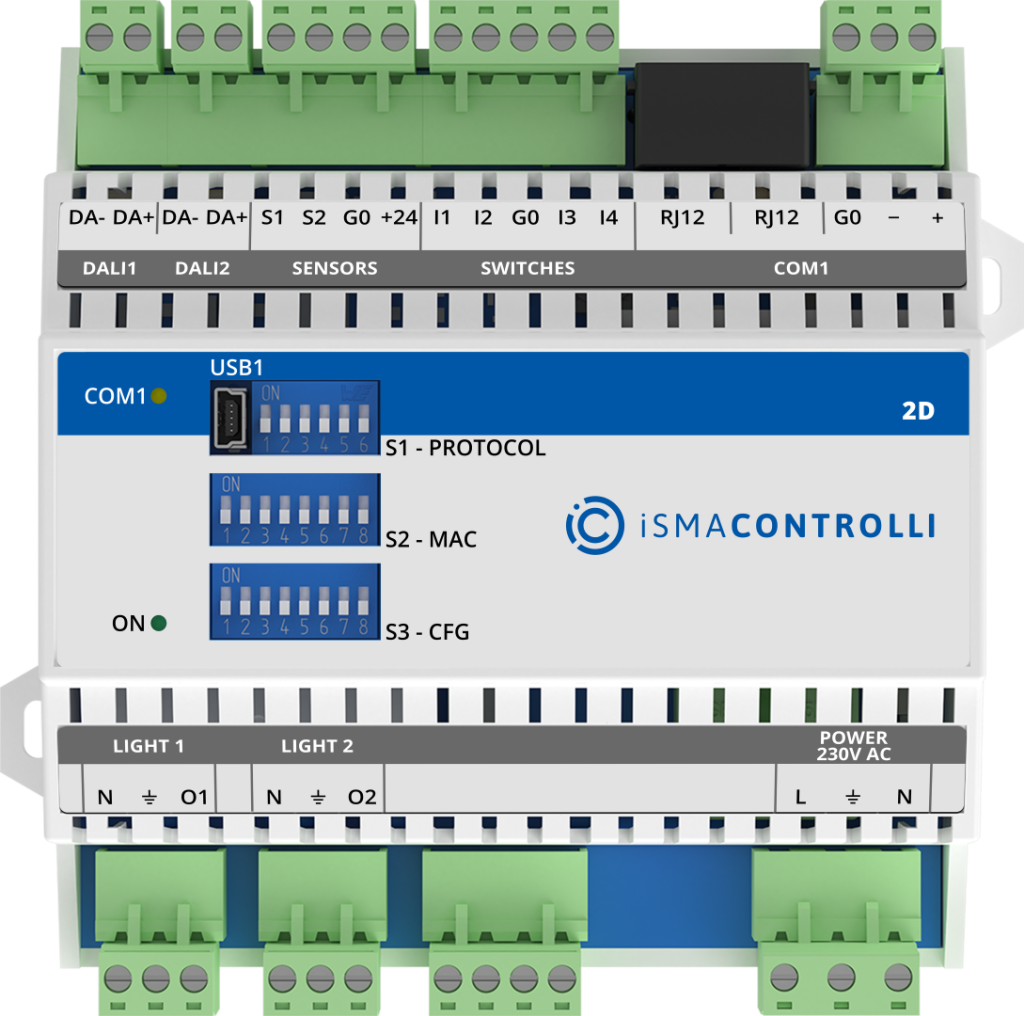

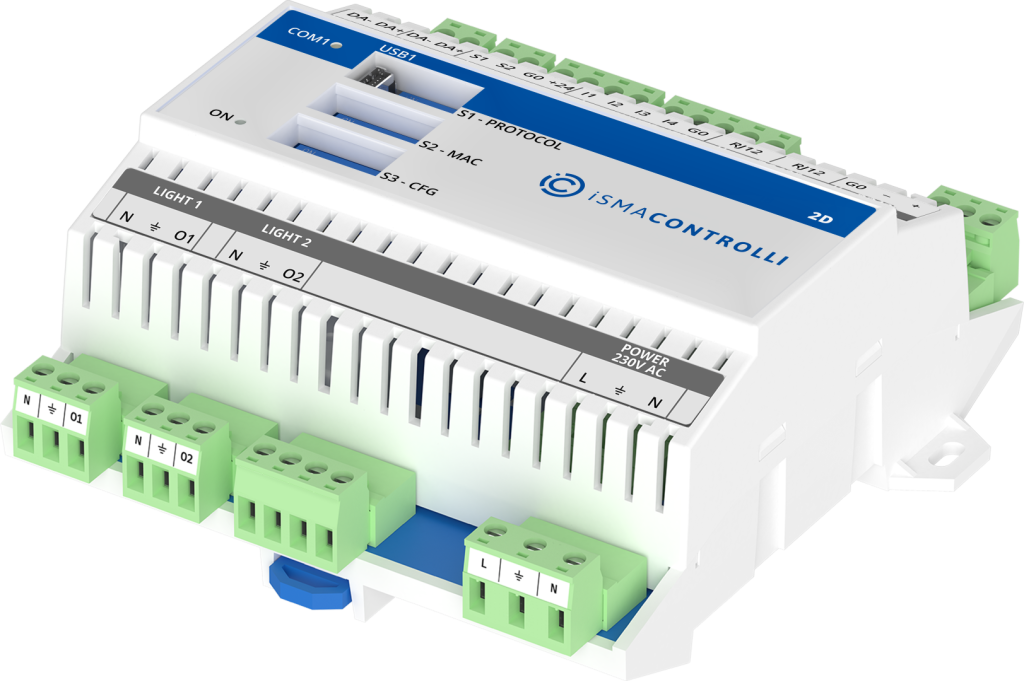

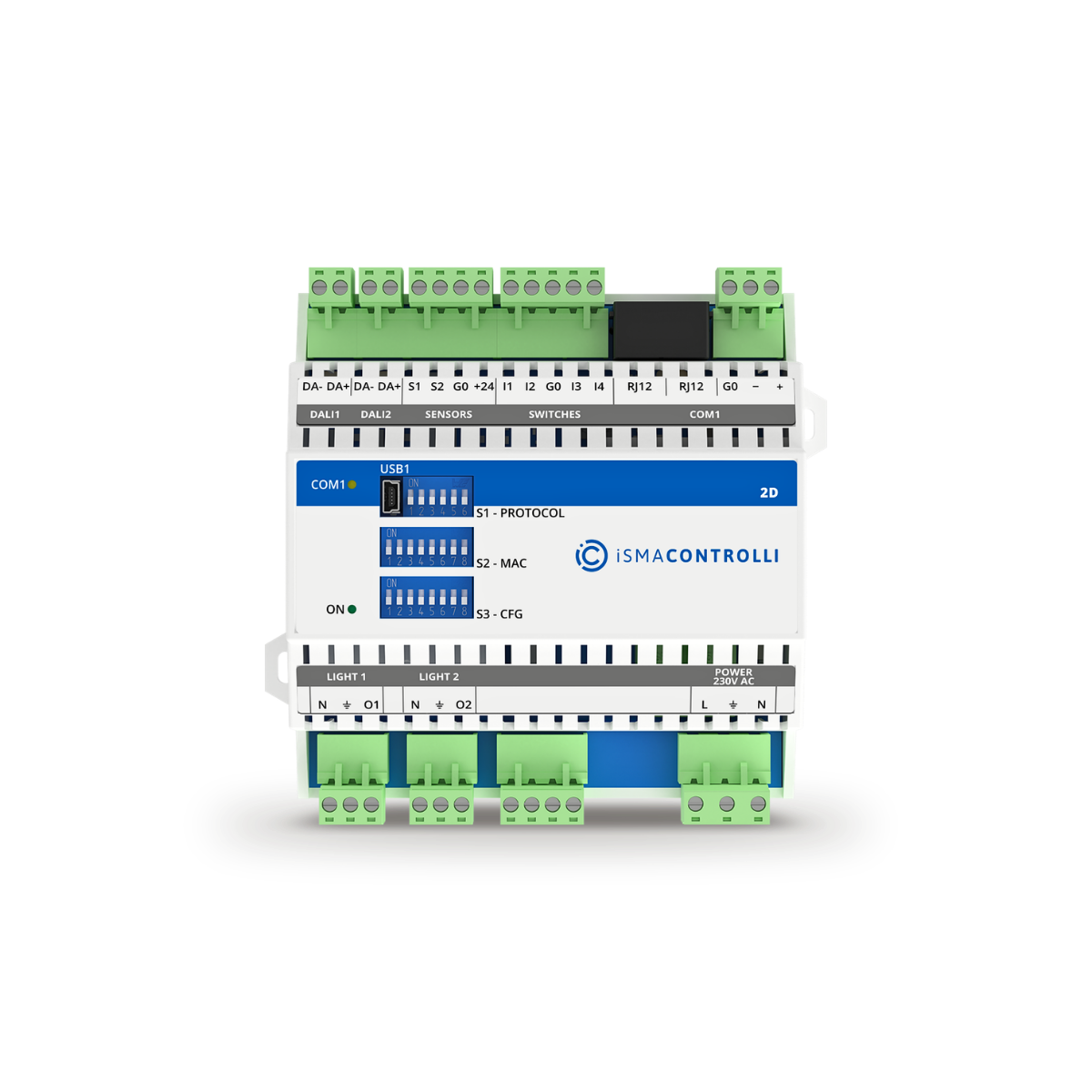

Light Controller. Delivered with a built-in application, which supports the most popular light control applications.
DALI Interface. Dedicated for controlling two separate DALI light areas with up to 32 DALI ballasts.
Commissioning Process. Controllers are ready for operation out of the box, you just have to configure the controller using built-in DIP switches.
Open Communication. Light and Blind controller is equipped with RS485 interfaces with open protocol Modbus RTU/ASCII – up to 128 devices on one bus.
Inputs and Outputs2 Special Inputs. Built-in two special inputs are designed to control the light via connected motion sensors or presence detectors.4 Digital Inputs. Two input for control of the light by connected monostable or bistable switches, and, in 2D1B, two inputs for a blind/shutter up and down movement control.2 Light Outputs. Fuse-protected light outputs 230 V AC, with a maximum 4 A load. The outputs can work in two modes: DALI or ON/OFF.
