Description
Unique 2-in-1 Device

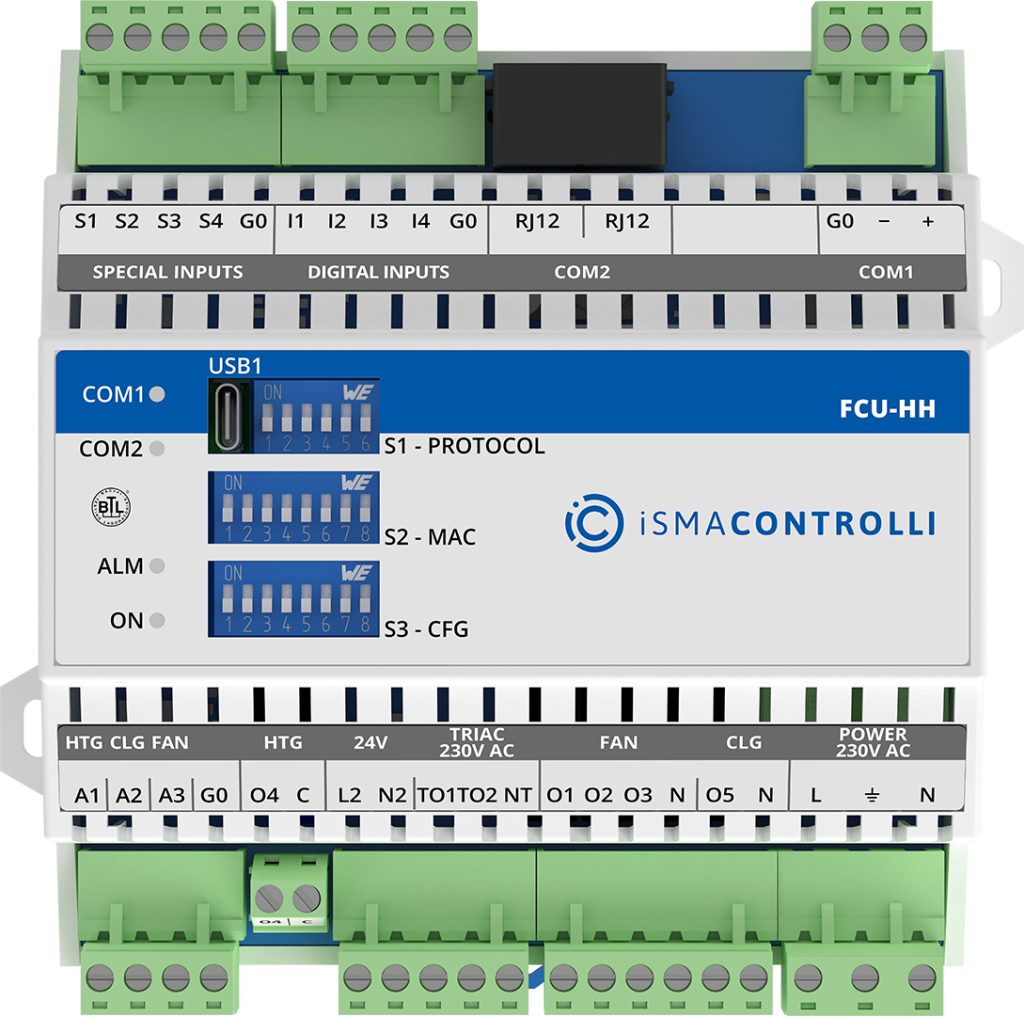

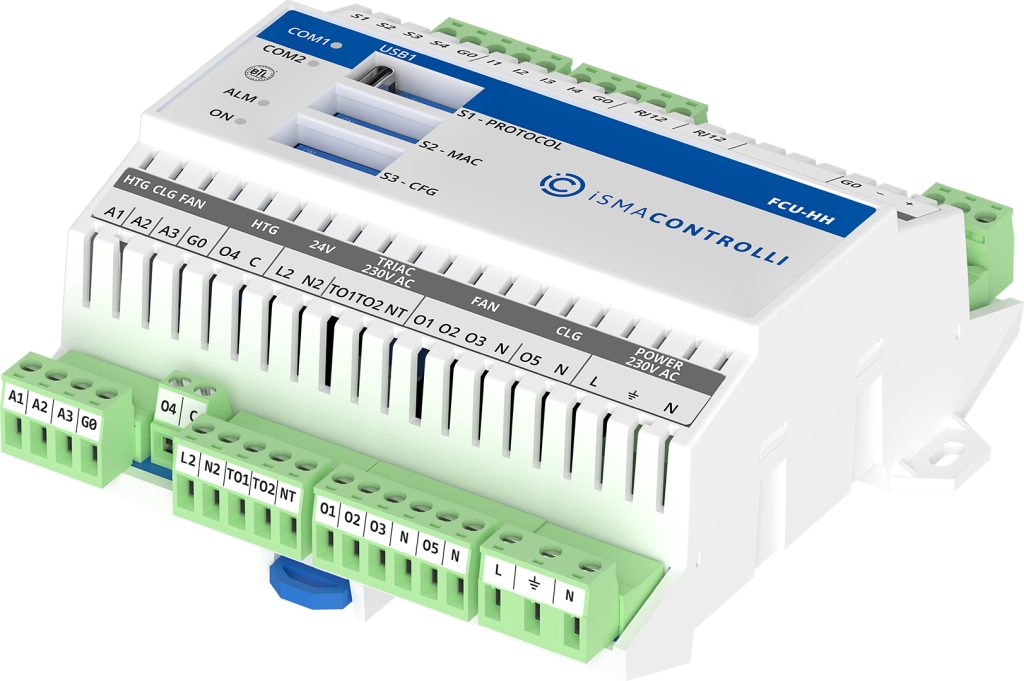

Configurable and freely programmable controller for fan coil units. Provides a complete, proven, effective control of the climate in the room. It allows for out-of-the-box configuration or designing tailor-made applications to meet the specific requirements of the building.
Powerful Configurable Application
To minimize time and simplify the commissioning process the FCU controller is delivered with a built-in application, which supports the most popular types of fan coil units. Dedicated DIP switches allow for adjusting parameters of the application.
Experience the Freedom of Control…iSMA-B-FCU works as a freely programmable controller with Modbus RTU/ASCII and BACnet MS/TP protocols onboard. The possibility of a tailor-made application creation with the power and flexibility offered by the Sedona Framework makes the controller useful not only for fan coil control….
Offered by the Sedona Framework
Sedona is an open-source software environment designed to make it easy to build smart, networked, embedded devices, which are well suited for implementing control applications.
Open Communication
Powerful FCU controllers are equipped with two RS485 interfaces with open protocols, BACnet MS/TP and Modbus ASCII/RTU, enabling integration of up to 128 devices on one bus.

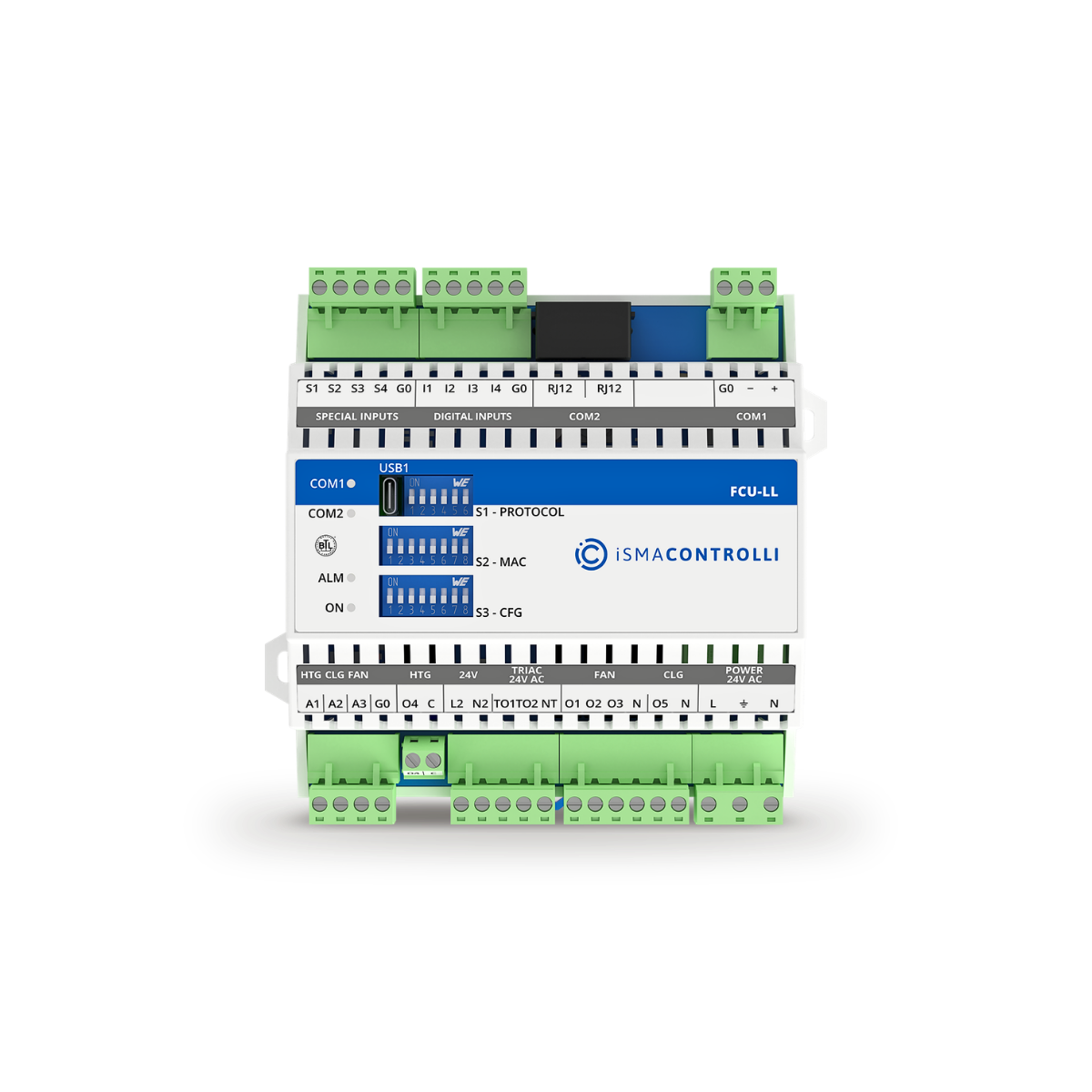

Three hardware version availableFCU controllers are available with 3 hardware version, from low voltage 24 V AC/DC power supply up to standard 230 V AC. It ensures that FCU controllers are versatile and adaptable for both small and large HVAC systems, thanks to the universal compatibility with most installations.
BACnet MS/TP. FCU controllers are equipped with Building Automation and Control Networks (BACnet) protocol and are certified by the official BACnet Test Laboratories (BTL).
Modbus RTU/ASCII. Modbus is one of the most-used protocols in industrial electronic devices.
Pre-loaded Application. Ready-to-use application for 256 types of fan coil units.
Serial Bus Interface. With open protocols, BACnet MS/TP and Modbus RTU/ASCII. You can connect up to 128 devices on one bus.
