Description
Modern and Smart Design

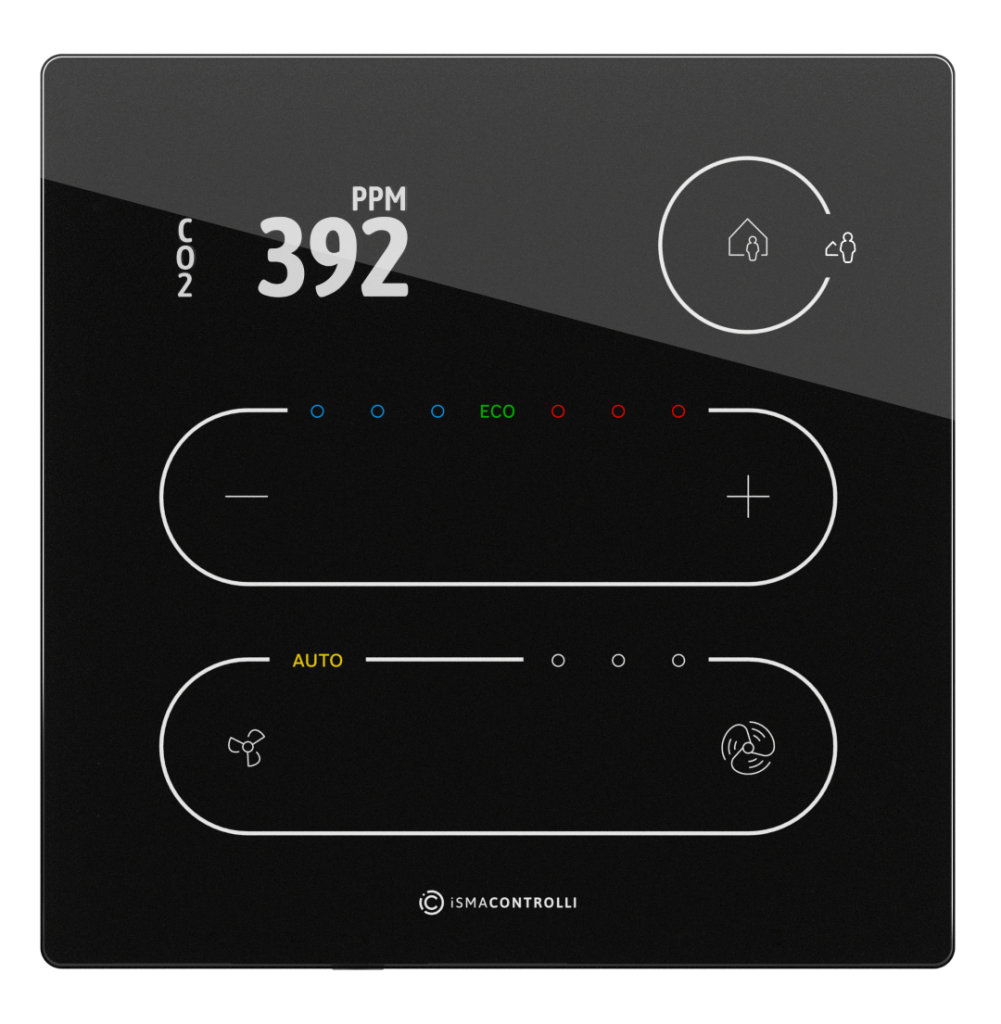

High-end technology packed in just a 14 mm thick glass panel makes it one of the slimmest devices on the market. A user-friendly interface of the front glass panel with interactive icons makes the Touch Point fit perfectly in commercial buildings, hotels, offices, meeting rooms, and other places that need a touch of class.
Intuitive Management
Touch Point (TP) panels interact with a user with LEDs that indicate the working status of the device. Ease of Installation and Configuration
Install the Touch Point your way. Suitable for surface and flush mounting, the Touch Point panel offers an effortless configuration using network protocols or a built-in USB port, even without an external power supply.
Multiprotocol Interface
The Touch Point is factory-equipped with the two most popular open communication protocols, Modbus and BACnet, which are selectable using a DIP switch.
Ultimate Flexibility
Select the color, sensor type, and display option. The Touch Point is available in a variety of configurations to suit your building perfectly. Available with a set of temperature, CO2, and humidity sensors. The TP version is equipped with a temperature sensor.
Technical Specification
Hardware Specification

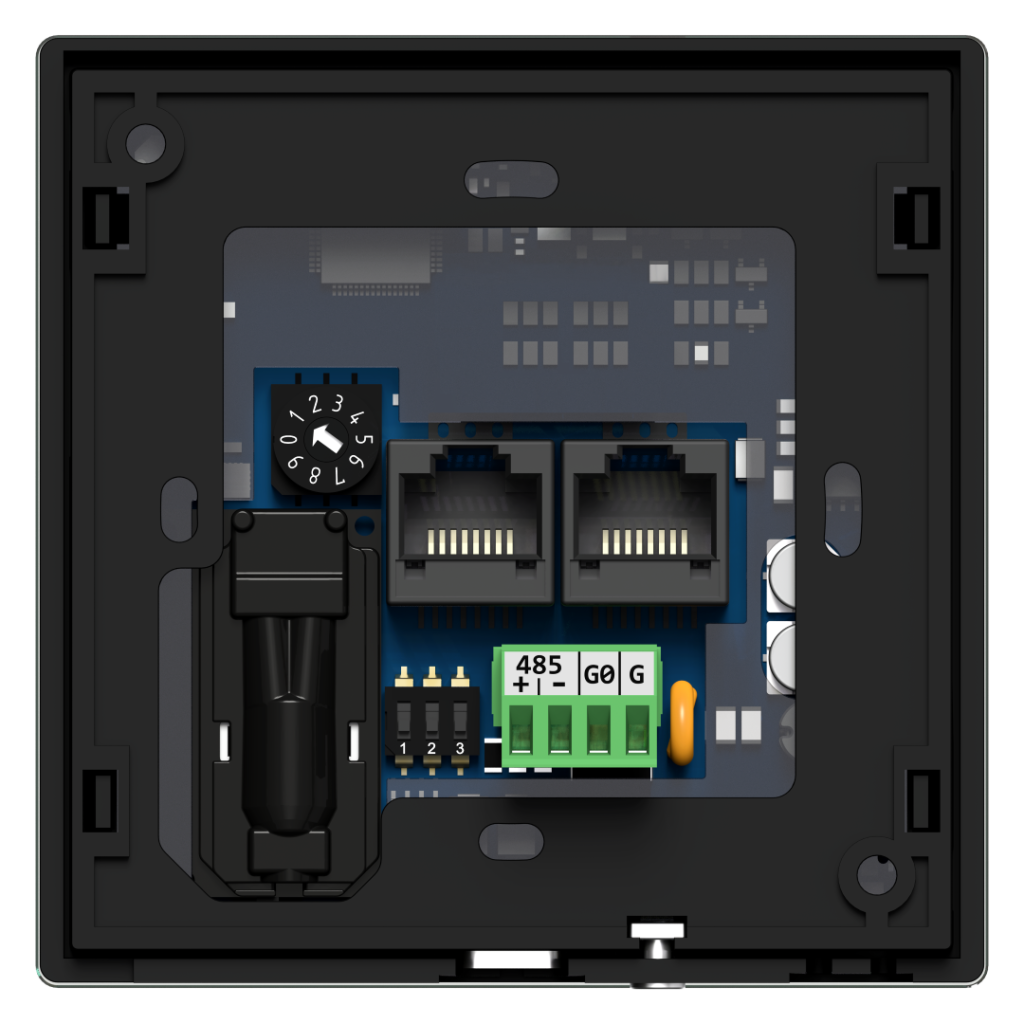

Five touch function buttonsRS485 interfaceUSB type C interfaceDIP switches for configuration
CommunicationBACnet MS/TPModbus RTU/ASCIIFree software iSMA Configurator
Power Supply20 – 34 V DC24 V AC ± 20%
