Description

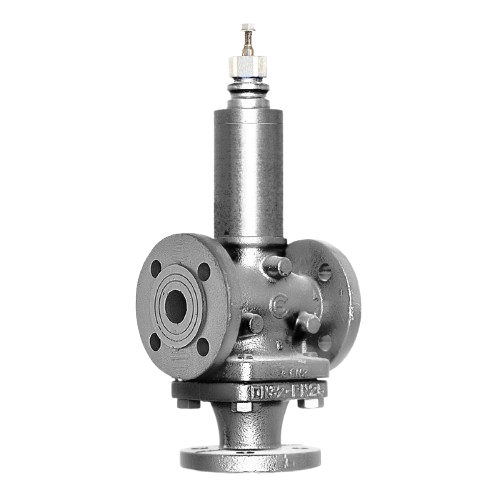

The 3FSA.
S valve family is designed for precise mixing and diverting control in heating, cooling and industrial HVAC systems where enhanced stem sealing is required. With a robust globe valve design and bellows-sealed stem construction, these valves ensure stable regulation, reliable operation and long-term tightness in demanding installations.
The three-way configuration enables accurate mixing or diverting of flow, while the stainless steel bellows provides an additional level of protection against leakage, making the 3FSA.
S series suitable for systems operating under elevated temperature conditions.
Key Features
Three-way globe valves with bellows-sealed stem
Nominal diameter range DN25…DN80
Pressure rating PN25
Flanged connection
Kvs range 4…100
Spheroidal cast iron body
Suitable for water, hot water, glycol mixtures, steam and thermal fluids
Media temperature range –10…300 °CBellows sealing providing enhanced tightness and protection against leakage
Designed for operation with electric globe valve actuators
Motorized by MVE and MVH actuators
Benefits
Enhanced sealing security compared to standard packed valves
Reliable mixing and diverting control
Stable and repeatable control performance
Suitable for higher-temperature applications
Reduced risk of leakage and extended service life
Applications
Mixing circuits in heating systems
High temperature HVAC installations
Industrial heating and process systems
Applications requiring increased stem sealing safety
