Description

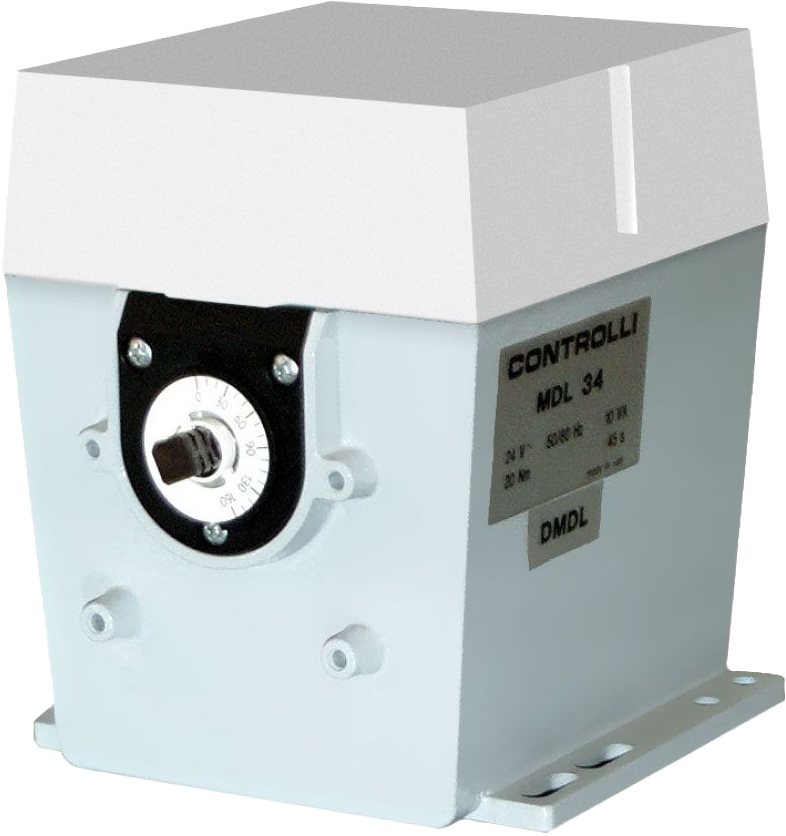

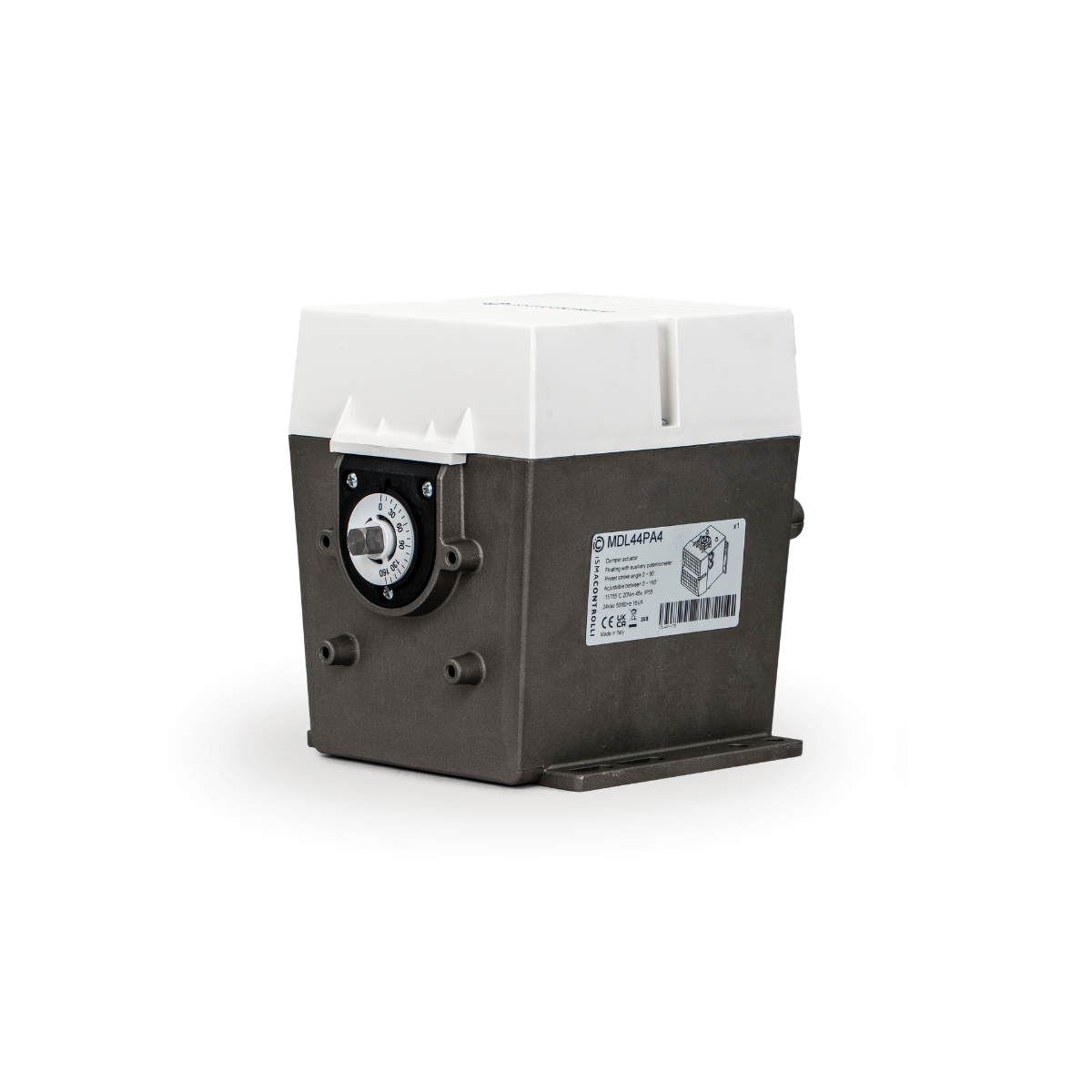

The MDL actuator family is designed for precise, reliable positioning of dampers in both HVAC and industrial environments. Its robust construction, smooth electromechanical motion and wide adjustable angular range make it ideal for applications requiring accurate airflow regulation or burner air modulation.
Thanks to its flexible control options and dual-shaft design, MDL integrates easily into new systems as well as retrofit installations. The durable housing, maintenance free mechanism and silent operation ensure long lasting, dependable performance even in demanding conditions.
Key Features
Electromechanical actuator for dampers with adjustable angular stroke up to 160°.
Available in floating, potentiometric and proportional control versions.
Torque range: 6…30 Nm, suitable for small to large dampers.
Designed for round or square shafts using a universal mounting interface.
Dual shaft output for flexible installation and linkage configurations.
IP55 environmental protection for harsh or industrial environments.
Durable aluminum and thermoplastic construction.
Manual tuning and cam adjustment accessible from the actuator front.
Wide power supply options: 24 V, 110 V or 230 V AC.
Optional accessories: auxiliary switches, potentiometer modules, linkage kits.
Benefits
Highly configurable actuator for both HVAC and industrial burner applications.
Wide-angle control allows precise airflow modulation.
Easy installation in new or retrofit projects thanks to universal mounting.
Long service life with durable, maintenance free mechanics.
Quiet, smooth operation suitable for commercial environments.
Applications
Air dampers in ventilation and air-distribution systems.
Combustion air control in gas and liquid fuel burners.
Industrial dampers requiring extended angular adjustment.
Mixing, shut-off and modulation dampers in HVAC installations.
Retrofit replacements for older damper actuators.
