Description

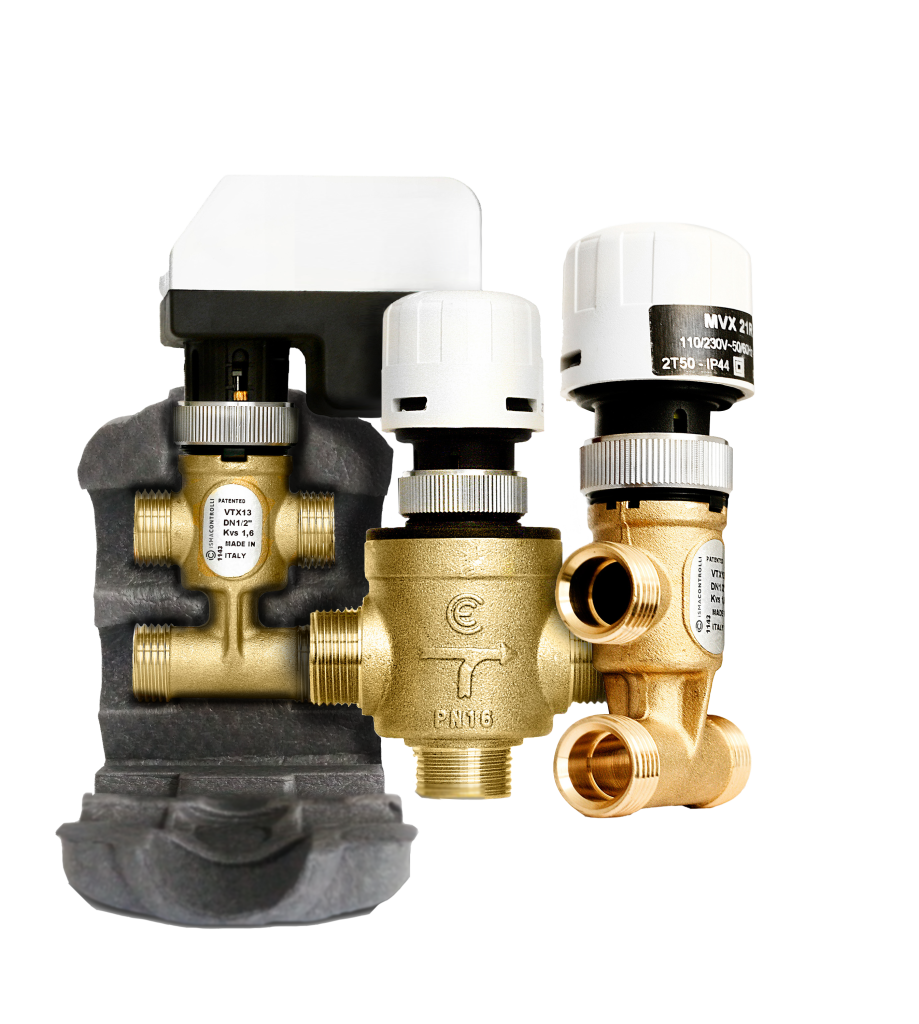

The MICRA valve family is designed for precise flow control and mixing applications in terminal units and zone control systems. Featuring an extremely compact globe valve design and a robust brass body, MICRA valves provide reliable regulation, tight shut-off and long-term performance in heating and cooling installations.
Thanks to their reduced dimensions, MICRA valves are ideal for direct installation on fan coil unit coils and other space-constrained terminal devices. The family includes two-way, three-way and three-way valves with built-in bypass, offering a flexible solution for modern HVAC terminal applications.
Key Features
Two-way and three-way globe valves, including versions with built-in bypass
Nominal diameter range DN15…DN25
Pressure rating PN16
Threaded connection
Kvs range 0.25…6
Brass body
Tight close-off on direct and angle way
Suitable for water and water + glycol 30% max
Media temperature range 5…95 °CNormally closed valve design without actuator
Designed for operation with electro-thermal actuators
Benefits
Extremely compact design for terminal unit installation
Reliable tight shut-off for energy efficient operation
Precise and repeatable flow control
Easy integration with electro-thermal actuators
Proven solution for zone-level regulation
Applications
Fan coil units
Chilled beams
Zone control systems
Small heating and cooling terminals
Residential and commercial HVAC installations
