Description

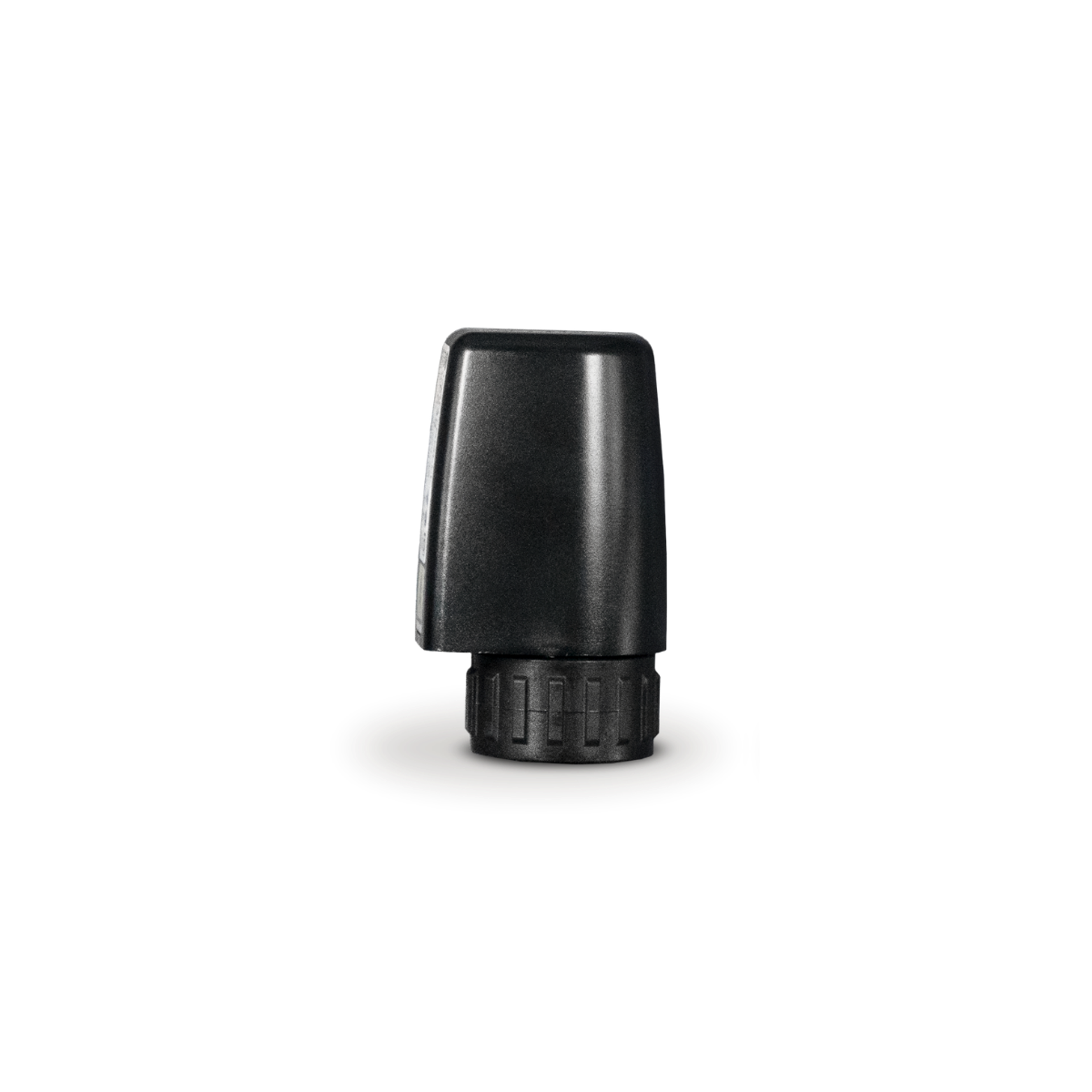

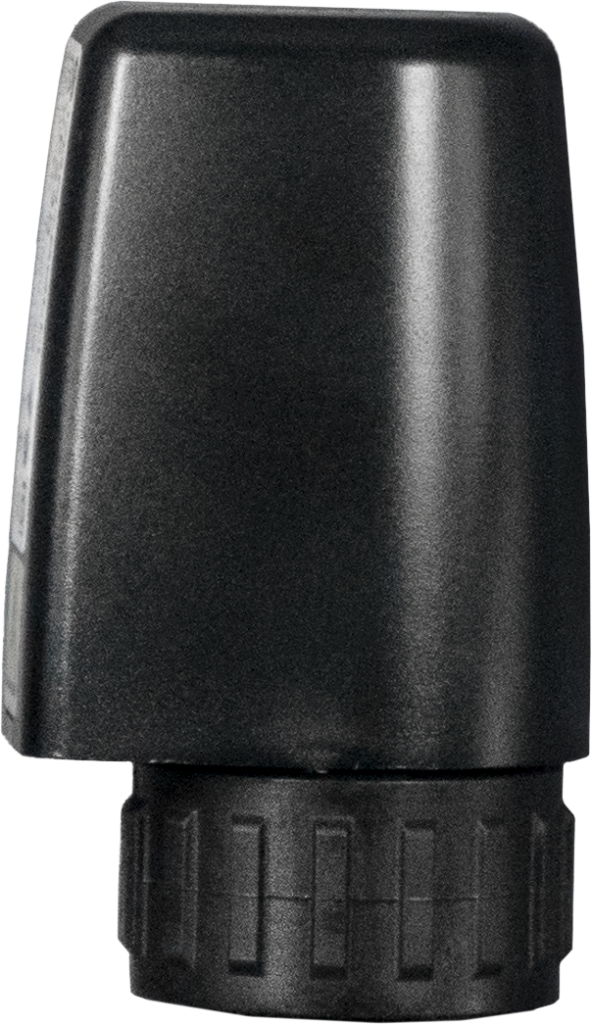

MVP electro-thermal actuators are designed for reliable ON/OFF control of fan coil valves and small hydronic circuits in heating and cooling systems. Their compact body, quiet operation and universal M30x1.5 mounting interface make them well suited for both residential and commercial installations.
The family is dedicated to PIUMA composite valves, ensuring optimal mechanical compatibility and long-term durability. MVP actuators are equipped with a composite mounting nut, specifically engineered to prevent damage to PIUMA valve bodies during installation.
Using a thermo-electric principle with a PTC heating element, MVP actuators deliver precise linear motion and maintenance-free performance. Optional microswitch versions enable simple status feedback where required. With robust housing and flexible supply voltage options, MVP provides an efficient solution for fan coils and composite zone valves.
Key Features
Electrothermal ON/OFF actuation with silent operation.
Fully compatible with PIUMA composite valve series (VPT, VPS, VPM).
Composite mounting nut to protect PIUMA valves during installation.
Available for 24 V AC/DC and 110–230 V AC power supply.
Optional auxiliary microswitch for end-position signalling.
Fixed 4 mm stroke and 170 N force.
M30x1.5 universal mounting interface.
IP44 protection for vertical mounting.
Compact, fire-resistant thermoplastic housing (V0 rated).
Benefits
Safe and reliable installation on PIUMA composite valves thanks to the dedicated composite nut.
Ideal for fan coils and small hydronic circuits requiring simple ON/OFF control.
Silent and maintenance-free thermo-electric actuation.
Enhanced system integration with optional microswitch feedback.
Easy and quick mounting due to universal connection and compact form factor.
ApplicationsPIUMA composite valves in heating and cooling systems.
Fan coil units in residential and commercial buildings.
Zone control and small hydronic circuits.
