Description

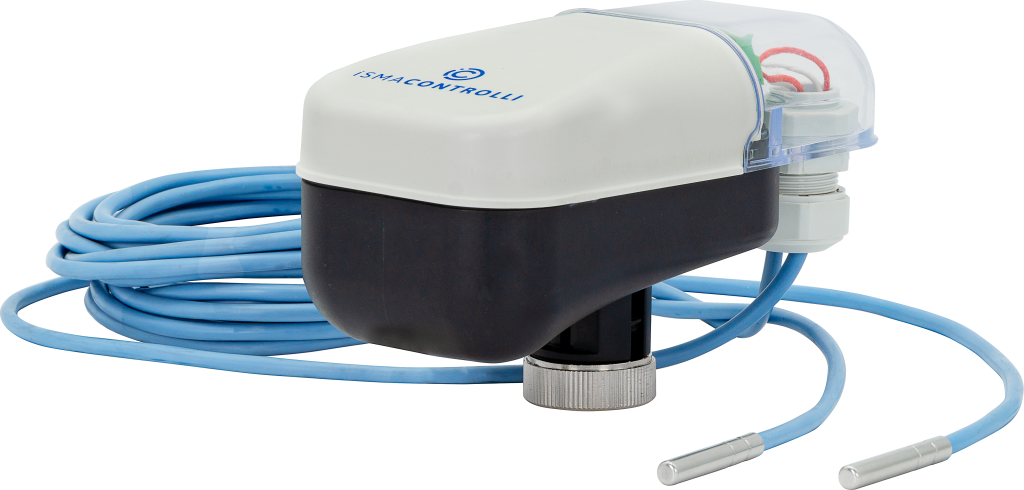

The MVC-2-RS Compact Network Actuator brings intelligent control to PICV and globe valve applications in modern hydronic systems. Designed for terminal units, coils and small HVAC circuits, it combines high-precision linear movement with built-in energy and temperature monitoring capabilities.
Thanks to native BACnet MSTP and Modbus RTU communication, MVC-2-RS integrates seamlessly with any Building Management System, providing real-time data, diagnostics and full remote configurability. When paired with PICV valves or temperature sensors, the actuator can independently execute advanced control strategies such as ΔT optimization, temperature limitation, energy calculation or power limitation, helping improve system efficiency while reducing load on controllers and electrical panels.
It’s compact housing, quiet stepper motor drive and automatic stroke calibration make MVC-2-RS easy to install, operate and commission. With its optional fail-safe version, it ensures safe operation even in critical applications where valve positioning must be guaranteed during a power loss.
Key Features300 N force and 16 mm stroke for globe valves.
Multiprotocol network actuator with native BACnet MSTP and Modbus RTU connectivity.
Intelligent functions: ΔT optimization, temperature control, energy monitoring, power limitation.
Compact electromechanical design for PICV and globe valves.
Automatic stroke calibration for fast installation and easy commissioning.
USB port for local configuration, diagnostics and firmware updates.
Advanced self-diagnostics with multi-LED status indication.
Available in a Fail-Safe variant with supercapacitor-based emergency return.
Universal RS485 communication and flexible integration into any BMS.
Benefits
Reduces controller workload by executing control loops directly in the actuator.
Enhances building energy efficiency through ΔT control, power management and temperature limiting.
Provides precise and stable valve modulation, improving coil performance and comfort.
Cuts commissioning time thanks to automatic calibration and simple configuration tools.
Enables continuous monitoring of actuator status, valve behavior and sensor data.
Ideal for modern, data-driven HVAC systems requiring granular energy insight.
ApplicationsPICV and globe valves in hydronic heating and cooling circuits.
Terminal units, zone coils, reheating and dehumidification coils.
Applications requiring temperature or ΔT control at the valve level.
Energy optimized HVAC systems integrating BACnet or Modbus networks.
Installations requiring secure operation with fail-safe capability.
