Description

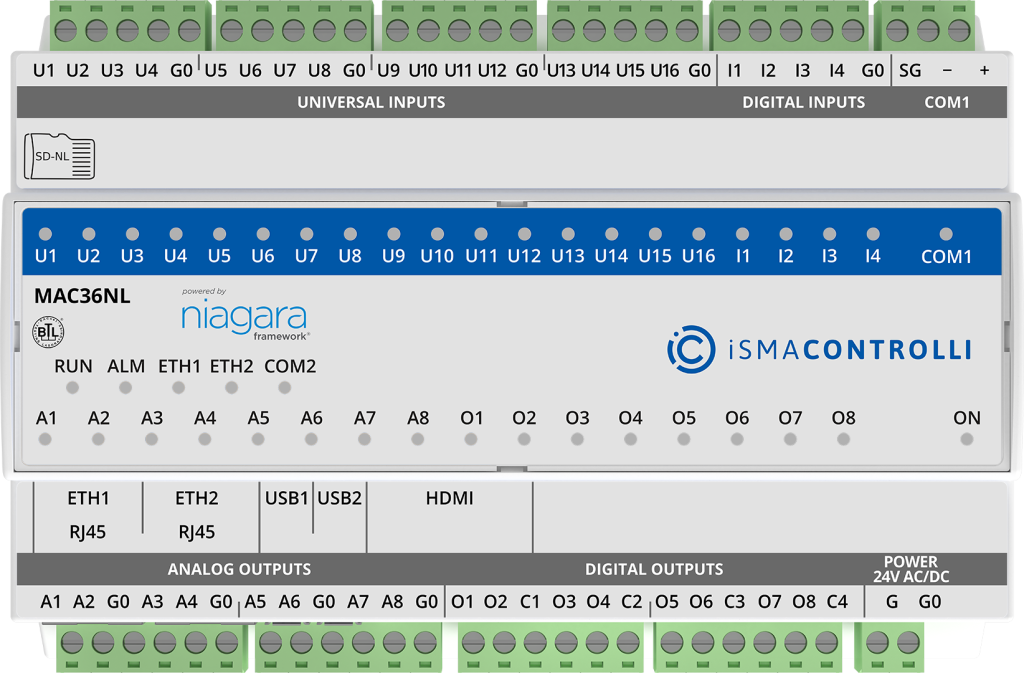

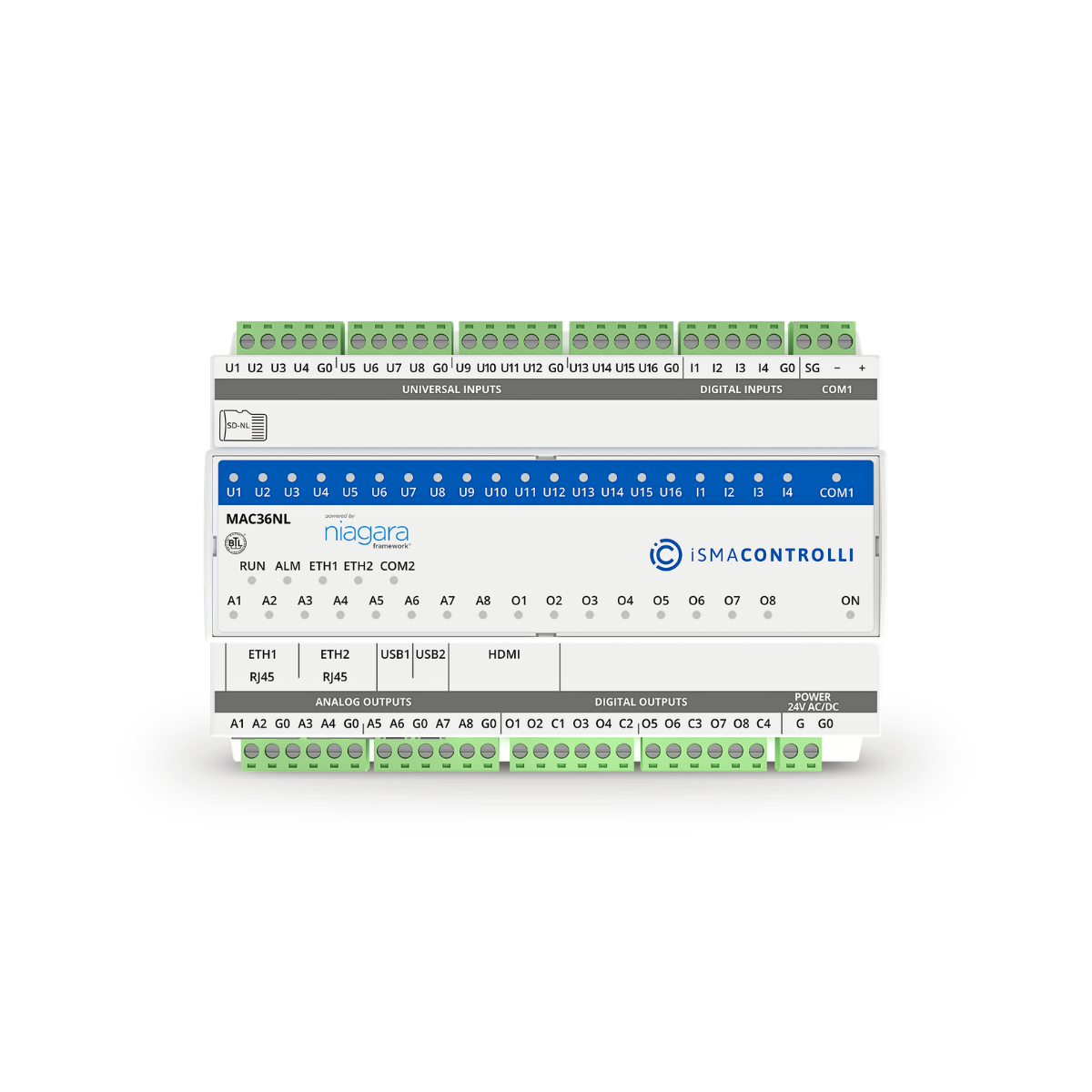

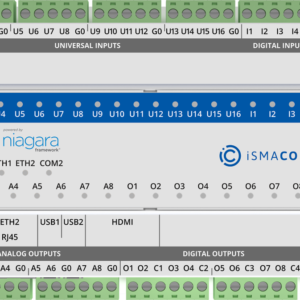

Master Application Controller powered by Niagara Framework
Just one powerful controller with 36 I/Os onboard for monitoring and control, trends, alarms, HTML5 visualization, and ability to integrate all protocols that exist in commercial buildings. Extra RS485 port enables an additional serial bus network with up to 128 devices.
All-in-one Integration
Achieve maximum efficiency and comfort of the building, while reducing the energy cost to a minimum, thanks to connecting HVAC, metering, lighting, comfort, and energy management into one common platform.
Visualization Efficiency
Access and control HTML5 visualization locally, with onboard HDMI output and 2 USB ports with touch and mouse support, or globally thanks to IP connectivity.
Expandable36 onboard inputs and outputs can be easily expanded by series of I/O modules by IP or RS485 interface, enabling expanding the controller capabilities at the same time of installation or in the future.
DDC Control
Take advantage of the onboard 36 I/Os managable within Niagara Framework for a direct control of a building and HVAC equipment.16 Universal Inputs
Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.4 Digital Inputs
Dry contact inputs – made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the SD card.8 Digital Outputs
Digital outputs equipped with normally open 3 A relays allow for direct control without additional relays.8 Analog Outputs0-10 V DC control with 10 mA accuracy, PWM modes and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios.
Scalable
It is all about the scale! Implement BMS into the small and medium-sized buildings that thought they can’t afford the BMS.
Complex Solution…
Provide control, data logging, alarming, scheduling, integration, and visualization. Choose whether you control your building remotely through the browser using a secured connection or locally with a screen connected directly to the controller through the HDMI port….to Make Your Building Smart!
Bring your building or a group of buildings to the cloud by one of the chosen protocols like MQTT to maximize the efficiency of the buildings, monitor and optimize the operation of the building to minimize the maintenance cost.
Niagara Framework
Supports Niagara 4 versions 4.4 up 4.15
Licensing
Core license: 50 points to 1250 points
Update packages: 50 points to 1250 points
Technical Specification
Hardware Specification1 GHz dual core CPU1 GB DDR3 RAM2 opto-isolated RS485 interfaces2 independent Ethernet interfaces2 USB 2.0 interfacesHDMI 1.4 interfaceFRAM Memory for Data Recovery ServiceiSMA OS Linux distribution
Industrial grade 4 GB microSD card
Status LED indicatorsDIN rail mounted36 I/Os onboard
Two programmable DIP switches
Two programmable rotary switches
Inputs16 Universal Inputs (UI)Temperature input: 10K3A1, 10K4A1, Carel 10K, 20K6A1, 2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1, Pt1000, Ni1000 0C, Ni 1000 20C, Ni1000 LG 2
Resistive input 0-1000 kΩVoltage input 0-10 V DCCurrent input 0-20 mADry contact input4 Digital Inputs (DI)Dry contact inputs
Fast pulse counter up to 100 Hz saved on the SD card
Outputs8 Digital Outputs (DO)NO relay output
Resistive load max. 3 A at 230 V AC / 30 V DCInductive load max. 75 VA at 230 V AC / 30 W @ 30 V DC8 Analog Outputs (AO)0-10 V DC output with maximum load up to 20 mAPWM: 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz, 100 Hz
Communication
Modbus RTU/ASCIIModbus TCP/IPBACnet MS/TPBACnet IPo
BiXSNMPKNX IPM-Bus IPLON IPTLS/SSL encryption
Built-in HTTP web serverMQTTOver 200 available drivers for proprietary protocols
Power Supply24 V DC24 V AC
