Description
Compact I/O Modules with Built-in Control and IP ConnectivityMINI-IP BACnet IP and Modbus TCP/IP I/O Modules are compact multiprotocol I/O expansion modules designed for distributed building automation systems. Operating over Ethernet networks, they support open protocols BACnet IP and Modbus TCP/IP, enabling seamless integration with controllers and existing BMS infrastructures.
The MINI-IP series extends building controllers with additional inputs and outputs and complements MIX series modules. Thanks to their compact size and versatile design, they are ideal for applications where space is limited but flexibility and functionality remain critical.
Compact Size. Powerful Control. Maximum Flexibility.
Designed for distributed applications, MINI-IP modules offer a wide range of I/O configurations across multiple module types. Their small footprint makes them ideal for installations where only a limited number of I/O points are required, without compromising system capabilities.
Selected models include built-in control algorithms for HVAC and lighting applications, allowing the modules to operate as standalone controllers. Additional timer relay modes support occupancy-based control strategies, enhancing energy efficiency and automation.
Manual override functionality (HOA – Hand/Off/Auto) enables direct local control of outputs, making MINI-IP modules especially suitable for applications requiring on-site interaction.
IP-Based Communication with Built-in Gateway FunctionalityMINI-IP modules feature both Ethernet and RS485 interfaces, combining IP-based communication with serial integration capabilities. The built-in RS485 interface acts as a Modbus TCP/IP to Modbus RTU/ASCII gateway, enabling connection of additional serial devices to the IP network.
Modules operate as client (master) devices and support integration of up to 128 Modbus slave devices via the gateway. This allows seamless expansion of systems across both IP and RS485 networks.
Fast Commissioning. Reliable Operation.
Configuration is simplified through DIP switch protocol selection and rotary switch addressing, allowing fast and intuitive setup. A built-in mini USB port enables initial configuration without external power supply, supporting quick deployment and local testing.
With support for open protocols, high-resolution inputs, and certified compliance, MINI-IP modules provide a reliable and future-ready solution for modern building automation systems.
Key Benefits
Compatibility – Works with a wide range of controllers and BMS platforms supporting open IP protocols
Flexibility – Wide range of compact module types for different I/O requirements
Scalability – Easy integration into distributed systems across IP and RS485 networks
Local Control – Manual override (HOA) and standalone control logic in selected models
Simplified Commissioning – Plug-and-play setup with USB power, DIP switches, and fast addressing
Quality and Reliability Confirmed by Certificates
Key Features
Compact multiprotocol I/O modules with IP communication
Available in 7 different module typesBACnet IP and Modbus TCP/IP selectable via DIP switch
Built-in Modbus TCP/IP to Modbus RTU/ASCII gateway
Ethernet and RS485 interfaces for flexible connectivity
Designed for distributed I/O and local control applications
Manual override switches available (models with “-H” suffix)Built-in HVAC and lighting control applications (4U4O / 4I4O models)Digital inputs support fast counting up to 100 Hz
Universal inputs with 16-bit resolution for high measurement accuracy
Automatic detection of universal input signal type
Support for wide range of temperature sensors (NTC, PT1000, Celsius and Fahrenheit)Digital outputs up to 230 V AC / 3 A or 8 A for direct load control
Triac outputs: 0.5 A at 24 V AC and 230 V ACAnalog outputs up to 20 mA with PWM support for SSR or relay control
Timer relay modes for occupancy-based applications1 Fast Ethernet portLED indicators for input and output status
Fast addressing from 0 to 99 using rotary switches
Built-in mini USB for initial configuration without external power supplyUL listedBTL certified
Standard of Inputs and Outputs
Universal Inputs
Support for over 20 types of temperature sensors, as well as voltage, resistance, current, and dry contact measurements on each universal input
Read Voltage, temperature, resistance, and input state at the same time
Digital Inputs
Dry contact inputs designed for monitoring applications
Fast pulse counter up to 100 Hz with override function, storing real-time values in EEPROM memory
Analog Outputs0–10 V DC control with 10 mA accuracyPWM modes supported
Maximum load up to 20 mA per channel, enabling direct control of external relays
Digital Outputs
Equipped with relays rated up to 3 A or 8 A (depending on model)Allow direct control of loads without the need for additional relays

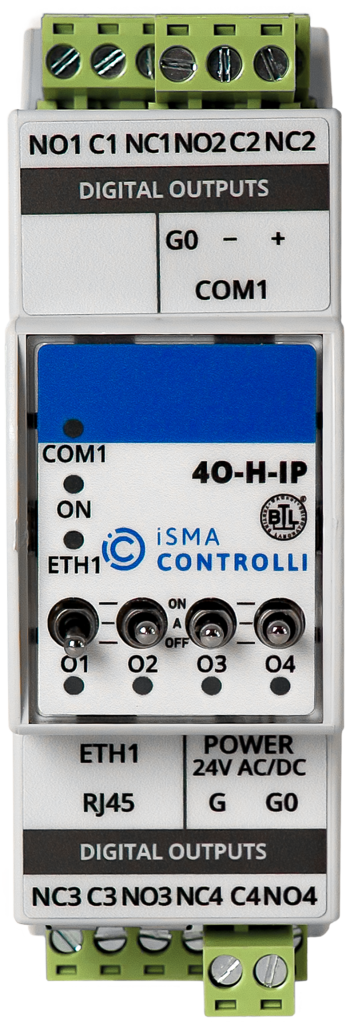

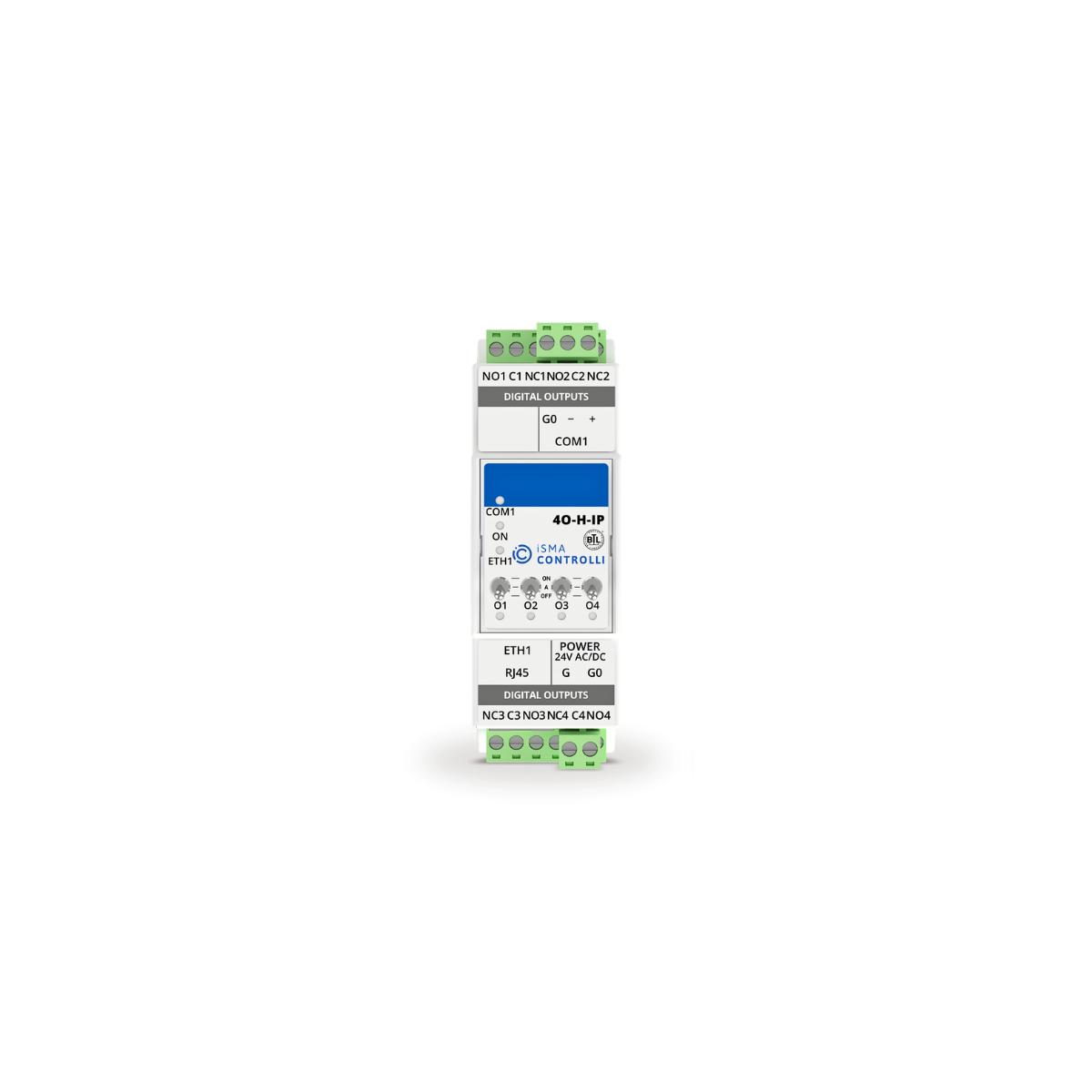

Relay output (NO/NC) max. 8 A, 230 V AC / 30 V DC supported in iSMA-B-4O-H / iSMA-B-4O-H-IP Notes
Models with “-H” suffix include manual override functionality (switches or potentiometers)Built-in control applications available in selected models (e.g., 4U4O-H-IP, 4I4O-H-IP)
