Description

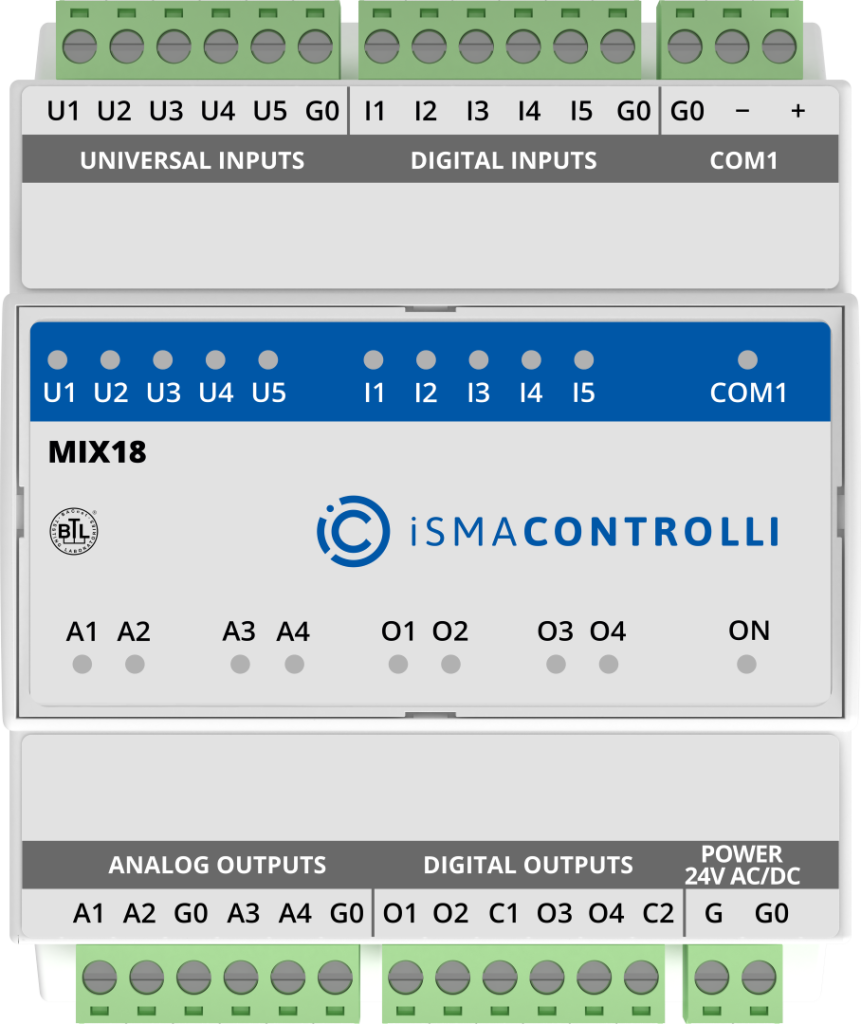

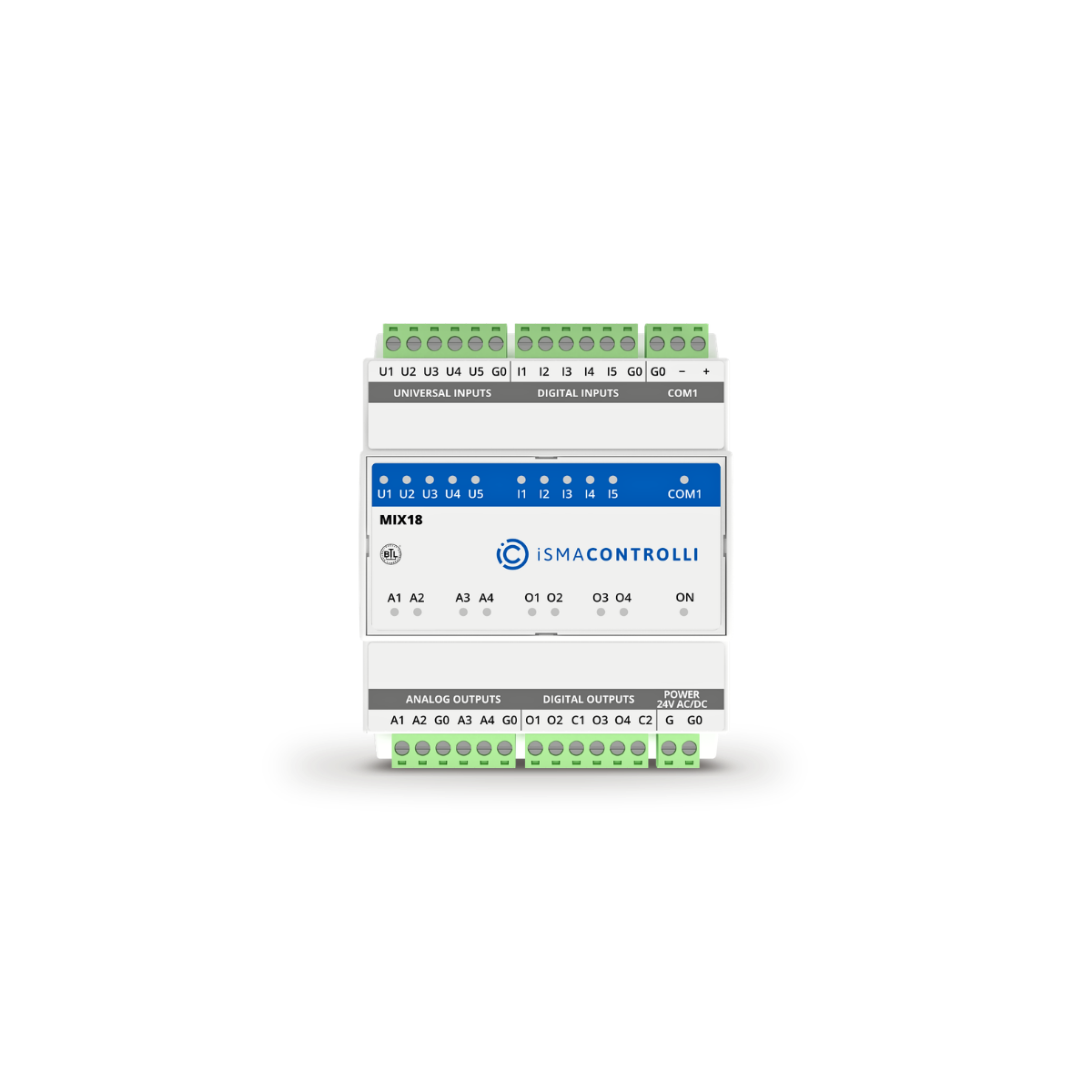

Expansion I/O Modules with a MIX of I/O’sMIX-RS BACnet and Modbus I/O Modules are multiprotocol I/O expansion devices designed to build distributed control systems in building automation applications. They extend the I/O capabilities of controllers such as MAC36PRO, iSMA-B-J9 controllers powered by Niagara, and RAC18-IP and UAC28-IP controllers with nano EDGE ENGINE embedded, via RS485 communication using open protocols BACnet MS/TP and Modbus RTU/ASCII. The modules are also compatible with any modern controller supporting open communication standards.
Each module integrates a mix of the most commonly used input and output types, enabling flexible deployment in both new and existing installations. Thanks to open protocol support, the modules can be easily integrated into existing BMS infrastructures without the need for additional gateways.
Fast Deployment. Scalable Architecture.
Devices can be configured as BACnet or Modbus via DIP switch selection, allowing quick adaptation to project requirements. Addressing is performed using rotary switches, significantly simplifying commissioning and reducing installation time. A built-in mini USB port allows initial configuration without external power supply, enabling fast setup and local testing.
The modular design, compact dimensions, and support for daisy-chain architectures make MIX-RS modules a scalable solution for expanding systems over time. As part of a broader portfolio including MIX, MAX, and MINI product lines, they provide flexibility to match diverse I/O requirements across applications.
Engineered for Reliability. Built for Everyday Use.
MIX-RS modules are designed for reliable operation in demanding environments, featuring high-resolution inputs, robust communication, and certified compliance. Configuration can be performed via DIP switches, communication protocols, or dedicated tools such as iSMA Configurator, ensuring flexibility during commissioning and maintenance.
Key Benefits
Compatibility – Works with a wide range of controllers and BMS platforms supporting open protocols
Flexibility – Part of a comprehensive I/O portfolio (MIX, MAX, MINI) to suit various application needs
Scalability – Modular design enables easy expansion in both new and retrofit installations
Simplified Commissioning – Plug-and-play setup with USB power, DIP switches, and fast addressing reduces installation time and cost
Quality and Reliability Confirmed by Certificates
Key Features
Mixed I/O configuration (all common input and output types in one module)BACnet MS/TP, BACnet Slave, and Modbus RTU/ASCII selectable via DIP switchRS485 half-duplex communication interface
Digital inputs support fast counting up to 100 Hz
Universal inputs with 16-bit resolution for high measurement accuracy
Support for wide range of temperature sensors (NTC, PT1000, Celsius and Fahrenheit)Automatic detection of universal input signal type
Digital outputs up to 230 V AC / 3 A for direct load control without external relays
Analog outputs with up to 20 mA load per channel (60 mA total) with PWM support for SSR or relay controlLED indicators for input and output status
Fast addressing from 0 to 99 using rotary switches
Built-in mini USB for initial configuration without external power supplyUL listedBTL certified
Standard of Inputs and Outputs
Universal Inputs
Support for over 20 types of temperature sensors, as well as voltage, resistance, current, and dry contact measurements on each universal input
Digital Inputs
Dry contact inputs designed for monitoring applications
Fast pulse counter up to 100 Hz with override function, storing real-time values in EEPROM memory
Analog Outputs0–10 V DC control with 10 mA accuracyPWM modes supported
Maximum load up to 20 mA per channel, enabling direct control of external relays
Digital Outputs
Equipped with normally open relays rated up to 3 AAllow direct control of loads without the need for additional relays
